HT48CA0

Features: ` Operating voltage: 2.2V~3.6V` Ten bidirectional I/O lines` Six schmitt trigger input lines` One carrier output (1/2 or 1/3 duty)` On-chip crystal and RC oscillator` Watchdog timer` 1Kx14 program ROM` 32x8 data RAM` Low voltage reset function` Halt function and wake-up feature reduce po...

product image

HT48CA0 Picture
See larger image
SeekIC No. : 004366798 Detail

HT48CA0: Features: ` Operating voltage: 2.2V~3.6V` Ten bidirectional I/O lines` Six schmitt trigger input lines` One carrier output (1/2 or 1/3 duty)` On-chip crystal and RC oscillator` Watchdog timer` 1Kx14...

HT48CA0 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT48CA0
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage: 2.2V~3.6V
` Ten bidirectional I/O lines
` Six schmitt trigger input lines
` One carrier output (1/2 or 1/3 duty)
` On-chip crystal and RC oscillator
` Watchdog timer
` 1Kx14 program ROM
` 32x8 data RAM
` Low voltage reset function
` Halt function and wake-up feature reduce power consumption
` 62 powerful instructions
` Up to 1s instruction cycle with 4MHz system clock
` All instructions in 1 or 2 machine cycles
` 14-bit table read instructions
` One-level subroutine nesting
` Bit manipulation instructions


Pinout

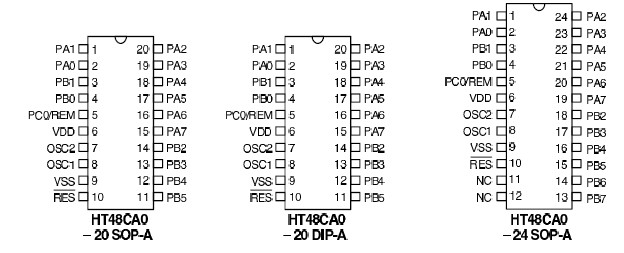

Connection Diagram


Specifications

Supply Voltage .................................0.3V to 4V
Input Voltage................. VSS0.3V to VDD+0.3V
Storage Temperature..............50°C to 125°C
Operating Temperature.............25°C to 70°C

*Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HT48CA0 is an 8-bit high performance RISC-like microcontroller specifically designed for multiple I/O product applications. The device is particularly suitable for use in products such as remote controllers, fan/light controllers, washing machine controllers, scales, toys and various subsystem controllers. A halt feature is included to reduce power consumption.
