HT27LC512

Features: ` 64K´8-bit organization` Single +3.3V power supply` Programming voltage VPP=12.2V±0.2V VCC=5.8V±0.2V` Low power consumption Active: 15mA max. Standby: 1mA typ.` Fast read access time: 120ns` CMOS and TTL compatible I/O` Commercial and industrial temperature range` Fast programming...

product image

HT27LC512 Picture
See larger image
SeekIC No. : 004366650 Detail

HT27LC512: Features: ` 64K´8-bit organization` Single +3.3V power supply` Programming voltage VPP=12.2V±0.2V VCC=5.8V±0.2V` Low power consumption Active: 15mA max. Standby: 1mA typ.` Fast read access tim...

HT27LC512 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT27LC512
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 64K´8-bit organization
` Single +3.3V power supply
` Programming voltage
VPP=12.2V±0.2V
VCC=5.8V±0.2V
` Low power consumption
Active: 15mA max.
Standby: 1mA typ.
` Fast read access time: 120ns
` CMOS and TTL compatible I/O
` Commercial and industrial temperature range
` Fast programming algorithm
` Read access time: 120ns
` Programming time 75ms typ.
` High-reliability CMOS technology
` Latch-up immunity to 100mA from -1.0V to VCC+1.0V
` Two line control (OE & CE )
` Standard product identification code
` Package type
28-pin DIP/SOP
32-pin PLCC
` Commercial temperature ranges (0°C to +70°C)


Pinout

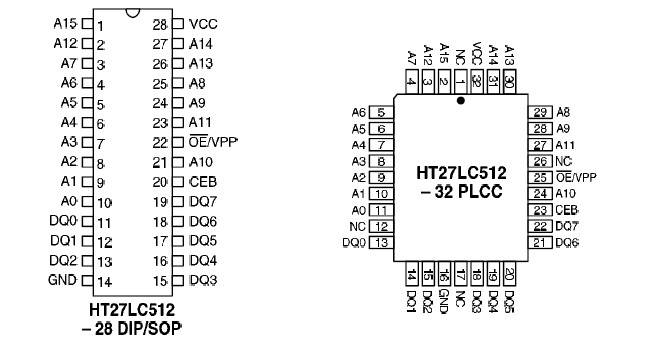

Connection Diagram


Specifications

Operation Temperature Commercial .................................................................0 to +70
Storage Temperature...................................................................................65 to 125
Applied VCC Voltage with Respect to GND.......................................................0.6V to 7.0V
Applied Voltage on Input Pin with Respect to GND ...........................................0.6V to 7.0V
Applied Voltage on Output Pin with Respect to GND ................................0.6V to VCC+0.5V
Applied Voltage on A9 Pin with Respect to GND .............................................0.6V to 13.5V
Applied VPP Voltage with Respect to GND......................................................0.6V to 13.5V
Applied READ Voltage (Functionality is guaranteed between these limits) .......... +3V to +3.6V

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT27LC512 chip family is a low-power, 512K bit, +3.3V electrically one-time programmable (OTP) read-only memories (EPROM). Organized into 64K words with 8 bits per word, it features a fast single address location programming, typically at 75ms per byte. Any byte can be accessed in less than 120ns with respect to Spec. This eliminates the need for WAIT states in high-performance microprocessor systems. The HT27LC512 has separate Output Enable (OE ) and Chip Enable (CE ) controls which eliminate bus contention issues.
