Product Details

Description



Features:

` Operating voltage: +3.3V
` Programming voltage
` VPP=12.5V±0.2V
` VCC=6.0V±0.2V
` High-reliability CMOS technology
` Latch-up immunity to 100mA from -1.0V to VCC+1.0V
` CMOS and TTL compatible I/O
` Low power consumption
` Active: 15mA max.
` Standby: 1A typ.
` 512KX8-bits organization
` Fast read access time: 90ns
` Fast programming algorithm
` Programming time 75's typ.
` Two line controls (OE and CE)
` Standard product identification code
` Commercial temperature range (0 to +70)
` 32-pin DIP/SOP/TSOP/PLCC package

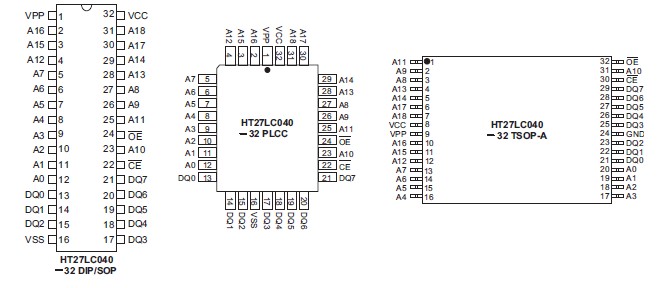

Pinout

Connection Diagram


Specifications

Operation Temperature Commercial ...................................................................................0 to 70
Storage Temperature.................................................................................................... -65 to 125
Applied VCC Voltage with Respect to VSS.........................................................................-0.6V to 7.0V
Applied Voltage on Input Pin with Respect to VSS..............................................................-0.6V to 7.0V
Applied Voltage on Output Pin with Respect to VSS ................................................. -0.6V to VCC+0.5V
Applied Voltage on A9 Pin with Respect to VSS .............................................................. -0.6V to 13.5V
Applied VPP Voltage with Respect to VSS........................................................................-0.6V to 13.5V
Applied READ Voltage (Functionality is guaranteed between these limits) ..........................+3.0V to 3.6V

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT27LC040 chip family is a low-power, 4096K  (4,194,304) bits, +3.3V electrically one-time programmable (OTP) read-only memories (EPROM). Organized into 512K words with 8 bits per word, it features a fast  single address location programming, typically at 75's per byte. Any byte can be accessed in less than 90ns with respect to Spec. This eliminates the need for WAIT states in high-performance microprocessor systems. The HT27LC040 has separate Output Enable (OE) and Chip Enable (CE) controls which eliminate bus contention issues.
