HT27C512

Features: ` Operating voltage: +5.0V` Programming voltage VPP=12.2V±0.2V VCC=5.8V±0.2V` High-reliability CMOS technology` Latch-up immunity to 100mA from -1.0V to VCC+1.0V` CMOS and TTL compatible I/O` Low power consumption Active: 30mA max. Standby: 1mA typ.` 64K´8-bit organization` Fast re...

product image

HT27C512 Picture
See larger image
SeekIC No. : 004366646 Detail

HT27C512: Features: ` Operating voltage: +5.0V` Programming voltage VPP=12.2V±0.2V VCC=5.8V±0.2V` High-reliability CMOS technology` Latch-up immunity to 100mA from -1.0V to VCC+1.0V` CMOS and TTL compatible I...

HT27C512 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT27C512
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage: +5.0V
` Programming voltage
VPP=12.2V±0.2V
VCC=5.8V±0.2V
` High-reliability CMOS technology
` Latch-up immunity to 100mA from -1.0V to VCC+1.0V
` CMOS and TTL compatible I/O
` Low power consumption
Active: 30mA max.
Standby: 1mA typ.
` 64K´8-bit organization
` Fast read access time: 70ns, 90ns and 120ns
` Fast programming algorithm
` Programming time 75ms typ.
` Two line control (OE & CE)
` Standard product identification code
` Package type
28-pin DIP/SOP
32-pin PLCC
` Commercial temperature range (0°C to +70°C)

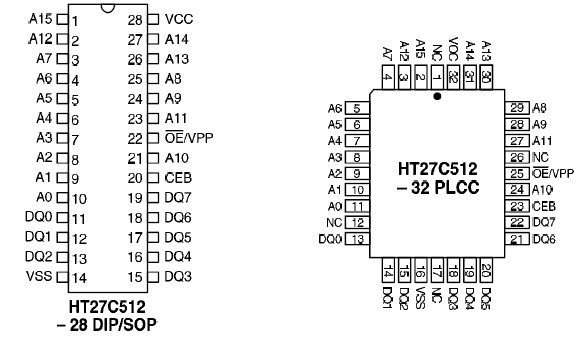

Pinout

Connection Diagram


Specifications

Operation Temperature Commercial ..........................................................................0 to +70
Storage Temperature............................................................................................65 to 125
Applied VCC Voltage with Respect to VSS............................................................... 0.6V to 7.0V
Applied Voltage on Input Pin with Respect to VSS.....................................................0.6V to 7.0V
Applied Voltage on Output Pin with Respect to VSS......................................... 0.6V to VCC+0.5V
Applied Voltage on A9 Pin with Respect to VSS.......................................................0.6V to 13.5V
Applied VPP Voltage with Respect to VSS ..............................................................0.6V to 13.5V
Applied READ Voltage (Functionality is guaranteed between these limits) ................+4.5V to +5.5V

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT27C512 chip family is a low-power, 512K bit, +5V electrically one-time programmable (OTP) read-only memories (EPROM). Organized into 64K words with 8 bits per word, it features a fast single address location programming, typically at 75ms per byte. Any byte can be accessed in less than 70ns/90ns with respect to Spec. This eliminates the need for WAIT states in high-performance microprocessor systems. The HT27C512 has separate Output Enable (OE) and Chip Enable (CE) controls which eliminate bus contention issues.
