HT1611C

Features: `Operating voltage: 1.2V~1.7V`Low operating current: 3A (typ.)`Dialing number and conversation time display`Conversation timer (59 mins and 59 secs max.)`8 or 10-digit LCD display driver; 3V,1/2 bias, 1/3 duty (8-digit hand-held calculator LCD used for 8-digit applications)`Real time clo...

product image

HT1611C Picture
See larger image
SeekIC No. : 004366578 Detail

HT1611C: Features: `Operating voltage: 1.2V~1.7V`Low operating current: 3A (typ.)`Dialing number and conversation time display`Conversation timer (59 mins and 59 secs max.)`8 or 10-digit LCD display driver; ...

HT1611C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT1611C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage: 1.2V~1.7V
` Low operating current: 3A (typ.)
` Dialing number and conversation time display
` Conversation timer (59 mins and 59 secs max.)
` 8 or 10-digit LCD display driver; 3V,1/2 bias, 1/3 duty (8-digit hand-held calculator LCD used for 8-digit applications)
` Real time clock with stopwatch
` Built-in dialer interface
` 12-hour or 24-hour format
` Two-button sequential operation for real time clock setting
` Uses 32768Hz crystal


Application

· Timers, clocks, watches
· LCD display drivers
· Telephone display interface
· Instrument display


Pinout

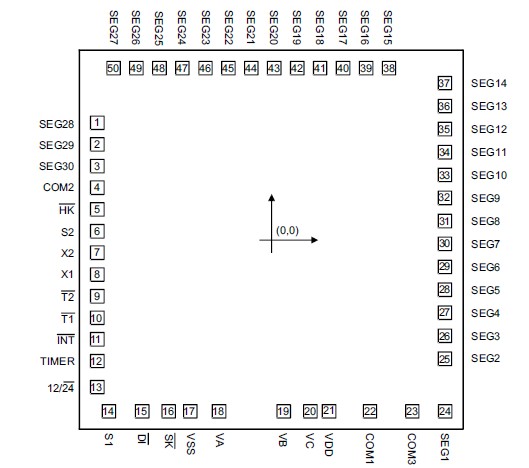

Connection Diagram


Specifications

Supply Voltage ........................................ .-0.3V to 5V
Storage Temperature .......................... -50 to 125
Input Voltage ..............................VSS-0.3 to VDD+0.3
Operating Temperature ......................... -20 to 75

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT1611C is a CMOS chip designed for dialer interfaces driving 8 or 10-digit LCDs. Various functions, such as real time clock, dialing number and conversation time display are provided.

The real time is displayed by default. When answering a telephone call, the timer is activated to tell users how long the conversation has taken. After the telephone is hung up, the total conversation time is shown for about 5 seconds and then the real time is displayed again. When making a phone call, the HT1611C receives the dialing data from the dialer and displays the phone number from left to right on the LCD. However, if there is no dialing action within 10 seconds, it restarts the timer again. By adding a TIMER key, the HT1611C can provide a stopwatch function and timer reset/hold functions (for details, refer to the functional description).
