HT1609L

Features: · Operating voltage: 2.7V~5.2V· Bias voltage: static~1/5 bias· LCD driving voltage: 3.0V~5.0V· 2´40 internal LCD drivers available· LCD driver with serial/parallel conversion functionApplication· Electronic dictionaries· Portable computers· Remote controllers· CalculatorsPinoutSpec...

product image

HT1609L Picture
See larger image
SeekIC No. : 004366577 Detail

HT1609L: Features: · Operating voltage: 2.7V~5.2V· Bias voltage: static~1/5 bias· LCD driving voltage: 3.0V~5.0V· 2´40 internal LCD drivers available· LCD driver with serial/parallel conversion functio...

HT1609L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT1609L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 2.7V~5.2V
· Bias voltage: static~1/5 bias
· LCD driving voltage: 3.0V~5.0V
· 2´40 internal LCD drivers available
· LCD driver with serial/parallel conversion function


Application

· Electronic dictionaries
· Portable computers
· Remote controllers
· Calculators


Pinout

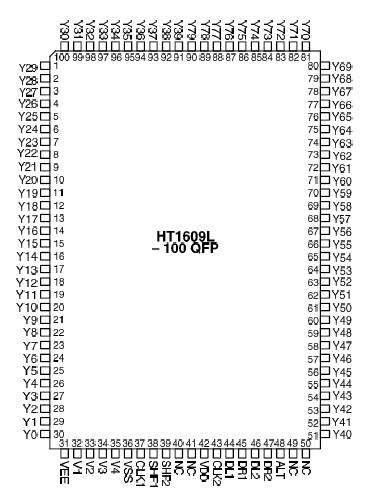

Connection Diagram


Specifications

Supply Voltage .............................. 0.3V to 5.5V
Storage Temperature...............50°C to 125°C
Input Voltage..................VSS0.3V to VDD+0.3V
Operating Temperature.............20°C to 70°C

*Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT1609L is an LCD driver LSI with 2´40 output channels using CMOS technology. It is equipped with two sets of 40-bit bidirectional shift registers, 40-bit data latches, 40-bit LCD drivers, and logic control circuits.

The HT1609L can convert serial data received from an LCD controller into parallel data and send out LCD driving waveforms to the LCD panel. The HT1609L is designed for general purpose LCD drivers. It can drive both static and dynamic drive LCDs. The LSI can be used as segment driver.
