HT1104

Amplifier Type: General Purpose
Type: -
Max Output Power x Channels @ Load: -
Voltage - Supply: -
Features: -
-3db Bandwidth: -
Number of Circuits: 4
Voltage - Input Offset: 2000µV
Mounting Type: Through Hole
Packaging: Tube
Current - Output / Channel: 15mA
Current - Supply: 2mA
Current - Input Bias: 10pA
Slew Rate: 1.4 V/µs
Gain Bandwidth Product: 1.4MHz
Output Type: Push-Pull
Package / Case: 14-CDIP (0.300", 7.62mm)
Series: HTMOS™
Manufacturer: Honeywell Microelectronics & Precision Sensors
Operating Temperature: -55°C ~ 225°C
Supplier Device Package: 14-CDIP
Voltage - Supply, Single/Dual (±): 5 V ~ 11 V, ±2.5 V ~ 5.5 V


Features:

• Specified Over -55 to +225°C
• Single or Split Supply Operation
• Common-Mode Input Voltage Range Includes Negative Rail
• Low Input Bias and Offset Parameters
• Input/Output Overload Protection
• ESD Protection Circuitry
• Latchup Free Design with Dielectric Isolation
• Hermetic 14-Lead Ceramic DIP


Application

• Down-Hole Oil Well
• Turbine Engine Control
• Avionics
• Industrial Process Control
• Nuclear Reactor
• Electric Power Conversion
• Heavy Duty Internal Combustion Engines

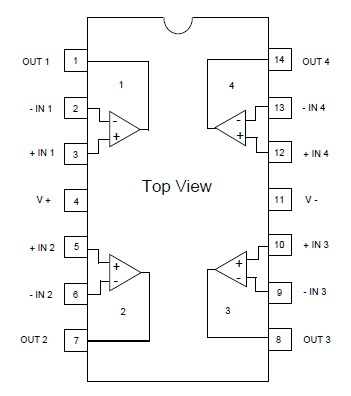

Pinout




Specifications

Total Supply Voltage (V+ to V-) ..........................................13 V
Input Voltage ..............................................- 0.5 to VDD +0.5 V
Output Short Circuit Duration ....................................Continuous
Input Current (each input) ............................................. ±5 mA
Output Current (each output) ...................................... ±50 mA
Storage Temperature ...........................................-65 to +325
Lead Temperature (attachment, 10 sec) ........................... 355

(1) Stresses in excess of those listed above may result in permanent damage. These are stress ratings only, and operation at these levels is not implied. Frequent or extended exposure to absolute maximum conditions may effect device reliability.

Description

The HT1104 monolithic quad operational amplifier is a versatile performer over an extremely wide temperature range. It is fabricated with Honeywell's dielectrically isolated high-temperature linear (HTMOS™) process, and is designed specifically for use in systems operating in severe high-temperature environments. All parts are burned in at 250°C to eliminate infant mortality.

These amplifiers HT1104 provide guaranteed performance over the full -55 to +225°C temperature range. Typically, parts will operate up to +300°C for a year, with derated performance. The HT1104 will operate with both single and split supplies. High-temperature applications such as transducer interfacing, amplification, active filtering, and signal buffering are all possible with the HT1104.

Parameters:

Technical/Catalog Information	HT1104
Vendor	Honeywell Microelectronics & Precision Sensors
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	General Purpose
Number of Circuits	4 - Quad
Package / Case	14-CDIP (300 mil)
Slew Rate	1.4 V/s
Gain Bandwidth Product	1.4MHz
Current - Supply	2mA
Current - Output / Channel	15mA
Voltage - Supply, Single/Dual (±)	5 V ~ 11 V, ±2.5 V ~ 5.5 V
Output Type	Push-Pull
-3db Bandwidth	-
Current - Input Bias	10pA
Operating Temperature	-55°C ~ 225°C
Voltage - Input Offset	2000V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	HT1104 HT1104 342 1076 ND 3421076ND 342-1076
