Product Details

Description



Features:

· Low power consumption
· Low voltage dropout
· Low temperature coefficient
· Wide operating voltage (12V Max.)
· TO-92 & SOT-89 packages



Application

· Battery-powered equipment
· Communication equipment
· Audio/Video equipment

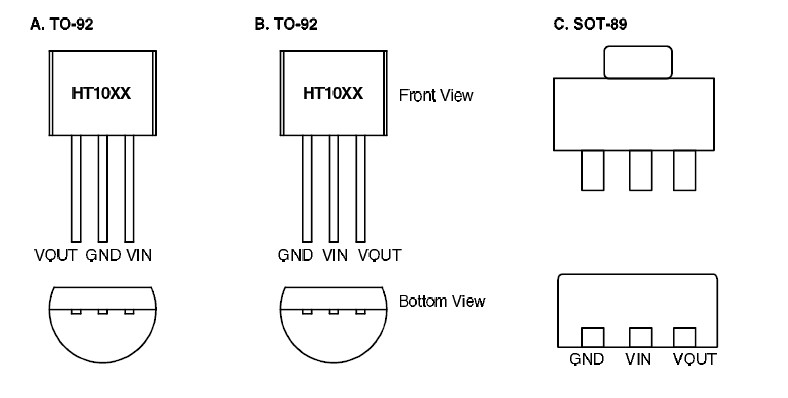

Pinout

  Connection Diagram


Specifications

Supply Voltage ...............................0.3V to 13V
Storage Temperature..............50°C to 125°C
Power Dissipation.............................. .....250mW
Operating Temperature................ 0°C to 70°C



Description

The HT1031 series is a set of three-terminal low power voltage regulators implemented in CMOS technology. They are available with several fixed output voltages ranging from 1.5V~7.0V. The advantage  of CMOS technology is low voltage dropout and low quiescent current.

Although designed primarily as fixed voltage regulators, these devices HT1031 can be used with external components to obtain variable voltages and currents.
