HT0740

Features: `±400V input to output isolation` No external voltage supply required` Low input logic current, 500A max` Floating isolated output` 5.0V logic compatibleApplication· Telecommunications· Modems· Solid state relays· High side switches· High end audio switches· Avionics· ATEPinoutSpecificat...

product image

HT0740 Picture
See larger image
SeekIC No. : 004366520 Detail

HT0740: Features: `±400V input to output isolation` No external voltage supply required` Low input logic current, 500A max` Floating isolated output` 5.0V logic compatibleApplication· Telecommunications· Mo...

HT0740 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT0740
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`±400V input to output isolation
` No external voltage supply required
` Low input logic current, 500A max
` Floating isolated output
` 5.0V logic compatible


Application

· Telecommunications
· Modems
· Solid state relays
· High side switches
· High end audio switches
· Avionics
· ATE


Pinout

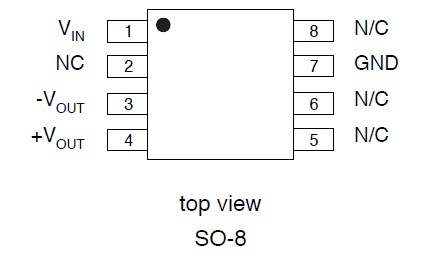

Connection Diagram


Specifications

Input to Output Isolation Voltage, VISO          ±400V
Logic Input Voltage, VIN                     0.5 to +7.0V
Operating Temperature                    40to +85
Storage Temperature                   55 to +150
Soldering Temperature2                                 300


Description

The Supertex HT0740 is a single channel high voltage, low input current isolated driver utilizing Supertex's proprietary HVCMOS® technology. It is designed to drive discrete MOSFETs configured as high side switches up to 400V. The HT0740 generates an independent DC isolated voltage across the pair of outputs when the logic input is at a logic high. The HT0740 does not require any external power supplies. The internal supply voltage is supplied from the logic input when it is in the high state.
