HSP3824

Features: • Complete DSSS Baseband Processor• High Data Rate. . . . . . . . . . . . . . . . . . . . .up to 4 MBPS• Processing Gain . . . . . . . . . . . . . . . . . . . . . up to 12dB• Programmable PN Code . . . . . . . . . . . . up to 16 Bits• Ultra Small Package . ....

product image

HSP3824 Picture
See larger image
SeekIC No. : 004366402 Detail

HSP3824: Features: • Complete DSSS Baseband Processor• High Data Rate. . . . . . . . . . . . . . . . . . . . .up to 4 MBPS• Processing Gain . . . . . . . . . . . . . . . . . . . . . up to 1...

HSP3824 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HSP3824
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Complete DSSS Baseband Processor
• High Data Rate. . . . . . . . . . . . . . . . . . . . .up to 4 MBPS
• Processing Gain . . . . . . . . . . . . . . . . . . . . . up to 12dB
• Programmable PN Code . . . . . . . . . . . . up to 16 Bits
• Ultra Small Package . . . . . . . . . . . . . . . . . 7 x 7 x 1mm
• Single Supply Operation (33MHz Max) . . 2.7V to 5.5V
• Single Supply Operation (44MHz Max) . . 3.3V to 5.0V
• Modulation Method . . . . . . . . . . . . .DBPSK or DQPSK
• Supports Full or Half Duplex Operations
• On-Chip A/D Converters for I/Q Data (3-Bit, 44 MSPS) and RSSI (6-Bit, 2 MSPS)


Application

• Systems Targeting IEEE802.11 Standard
• DSSS PCMCIA Wireless Transceiver
• Spread Spectrum WLAN RF Modems
• TDMA Packet Protocol Radios
• Part 15 Compliant Radio Links
• Portable Bar Code Scanners/POS Terminal
• Portable PDA/Notebook Computer
• Wireless Digital Audio
• Wireless Digital Video
• PCN/Wireless PBX


Pinout

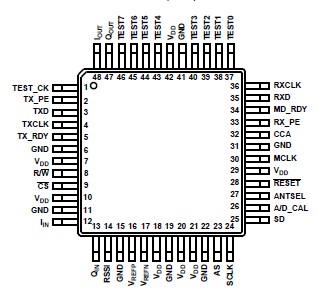

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0V
Input, Output or I/O Voltage . . . . . . . . . . . .GND -0.5V to VCC+0.5V
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Lead Temperature (Soldering 10s) (Lead Tips Only) . . . .   . . +300
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    . Class 1


Description

The Harris HSP3824 Direct Sequence (DSSS) baseband processor is part of the PRISM™ 2.4GHz radio chipset, and contains all the functions necessary for a full or half duplex packet baseband transceiver.

The HSP3824 has on-board ADC's for analog I and Q inputs, for which the HFA3724 IF QMODEM is recommended. Differential phase shift keying modulation schemes DBPSK and DQPSK, with optional data scrambling capability, are combined with a programmable PN sequence of up to 16 bits. Built-in flexibility allows the HSP3824 to be configured through a general purpose control bus, for a wide range of applications. A Receive Signal Strength Indicator (RSSI) monitoring function with on-board 6-bit 2 MSPS ADC provides Clear Channel Assessment (CCA) to avoid data collisions and optimize network throughput. The HSP3824 is housed in a thin plastic quad flat package (TQFP) suitable for PCMCIA board applications.
