HSM126S

Features: ` HSM126S which is connected in series configuration enable to protect electric systems from missoperation against external + and surge.` Low VF and low leakage current.` MPAK package is suitable for high density surface mounting and high speed assembly.PinoutSpecifications Item ...

product image

HSM126S Picture
SeekIC No. : 004366146 Detail

HSM126S: Features: ` HSM126S which is connected in series configuration enable to protect electric systems from missoperation against external + and surge.` Low VF and low leakage current.` MPAK package is ...

floor Price/Ceiling Price

Part Number:
HSM126S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  HSM126S which is connected in series configuration enable to protect electric systems from missoperation against external + and surge.
`  Low VF and low leakage current.
`  MPAK package is suitable for high density surface mounting and high speed assembly.



Pinout

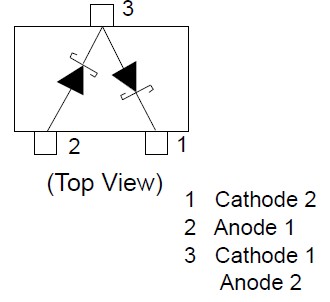

  Connection Diagram


Specifications

Item
Symbol
Value
Unit
Repetitive peak reverse voltage
VRRM
20
V
Average forward current
IO
200
mA
Non-Repetitive peak forward surge current
IFSM*1
2
A
Junction temperature
Tj
125
Storage temperature
Tstg
55 to +125
Notes: 1. Sine wave, Two device total
           2. 50Hz half sine wave 1 pulse
           3. Per one device
