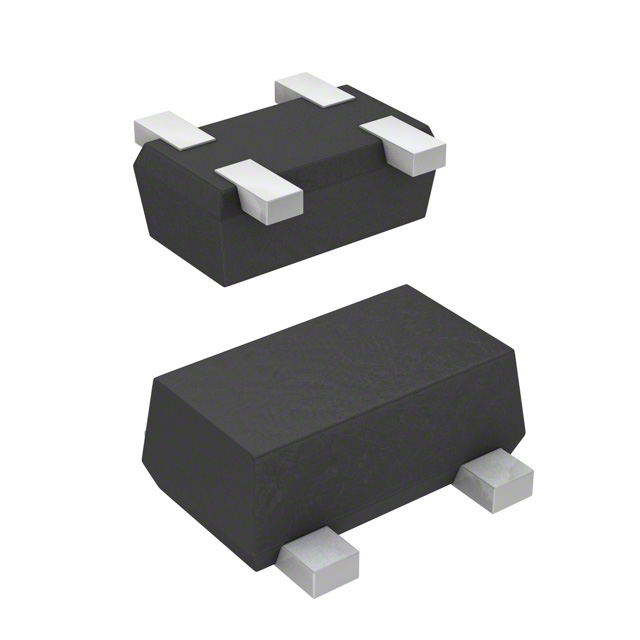

See larger image

SeekIC No. : 003434991 Detail

HSG1002VE-TL-E: IC AMP HBT SIGE 38GHZ MFPAK-4

HSG1002VE-TL-E Data Sheet

Get Latest Price

Part Number:: HSG1002VE-TL-E
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

HSG1001 evaluate
Features: • High power gain and low noise figure ;• MSG = 22 dB typ. , NF = 0.75 dB ty...
HSG1002 evaluate
Features: • High power gain and low noise figure ;• MSG = 21 dB typ. , NF = 0.7 dB typ...
HSG1003 evaluate
Features: • High power gain and low noise figure ;• MSG = 21 dB typ. , NF = 0.65 dB ty...

Product Details

Quick Details

Series:	-	Manufacturer:	Renesas Electronics America
Transistor Type:	NPN	Typical Resistor Ratio :	0.12
Voltage - Collector Emitter Breakdown (Max):	3.5V	Frequency - Transition:	38GHz
Noise Figure (dB Typ @ f):	0.7dB ~ 1.8dB @ 1.8GHz ~ 5.8GHz	Gain:	8dB ~ 19.5dB
Power - Max:	200mW	DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 5mA, 2V
Current - Collector (Ic) (Max):	35mA	Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing	Supplier Device Package:	4-MFPAK

Description

Series: -
Transistor Type: NPN
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)
Power - Max: 200mW
Current - Collector (Ic) (Max): 35mA
Voltage - Collector Emitter Breakdown (Max): 3.5V
Manufacturer: Renesas Electronics America
Frequency - Transition: 38GHz
Noise Figure (dB Typ @ f): 0.7dB ~ 1.8dB @ 1.8GHz ~ 5.8GHz
Gain: 8dB ~ 19.5dB
DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 5mA, 2V
Package / Case: 4-SMD, Gull Wing
Supplier Device Package: 4-MFPAK

Parameters:

Technical/Catalog Information	HSG1002VE-TL-E
Vendor	Renesas Technology America
Category	Discrete Semiconductor Products
Frequency - Transition	38GHz
Noise Figure (dB Typ @ f)	1.2dB ~ 1.8dB @ 5.8GHz
Current - Collector (Ic) (Max)	35mA
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 5mA, 2V
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	3.5V
Gain	1.95dB
Power - Max	200mW
Compression Point (P1dB)	-
Package / Case	4-MFP
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HSG1002VE TL E HSG1002VETLE
