HS69SPDT312

Features: • Low Insertion Loss: 0.55 dB at 2.4 GHz : 0.75 dB at 5.9 GHz• High Isolation : 25 dB at 2.4 GHz : 22 dB at 5.9 GHz• GaAs PHEMT technology• Miniature QFN-12 Plastic PackageApplication• WLAN 802.11a,b,g / WiMAX 802.16d T/R SwitchingPinoutSpecifications C...

product image

HS69SPDT312 Picture
See larger image
SeekIC No. : 004365829 Detail

HS69SPDT312: Features: • Low Insertion Loss: 0.55 dB at 2.4 GHz : 0.75 dB at 5.9 GHz• High Isolation : 25 dB at 2.4 GHz : 22 dB at 5.9 GHz• GaAs PHEMT technology• Miniature QFN-12 Plastic...

HS69SPDT312 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HS69SPDT312
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Insertion Loss: 0.55 dB at 2.4 GHz
                                 : 0.75 dB at 5.9 GHz
• High Isolation : 25 dB at 2.4 GHz
                          : 22 dB at 5.9 GHz
• GaAs PHEMT technology
• Miniature QFN-12 Plastic Package


Application

• WLAN 802.11a,b,g / WiMAX 802.16d T/R Switching


Pinout

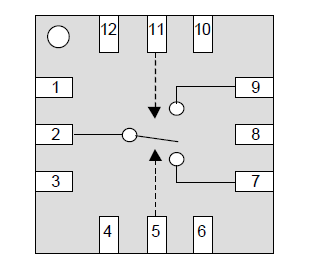

Connection Diagram


Specifications

Characteristic Symbol Value Unit
DC Input Voltage V1, V2 +6 V
Input Power Pin +36 dBm
Storage Temperature Tstg -40 to +85
Operating Case Temperature Top -40 to +85



Description

HS69SPDT312/M is a single-pole double-throw (SPDT) GaAs PHEMT switch designed WLAN and WiMAX transmit / receive switching applicattion. HS/M69SPDT312 is ideally suited for applications where low profile and small size are critical. It also features high linearity, low control voltage, low insertion loss, and high isolation. The device is in low-cost miniature 12-lead 3.0mm x 3.0mm package.
