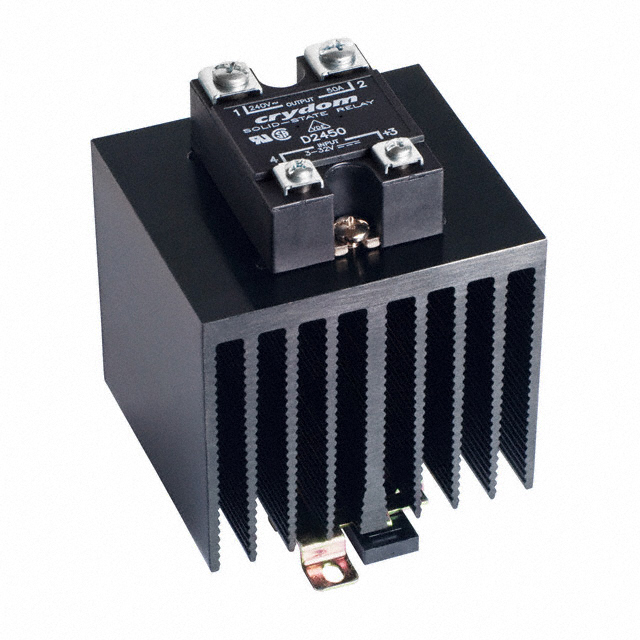

Heat Sinks 45A/240V DC Input ZC SSR Mounted Heatsink
HS122DR-CC2450W3U: Heat Sinks 45A/240V DC Input ZC SSR Mounted Heatsink
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Product : | Heatsinks | Mounting Style : | DIN Rail | ||
Heatsink Material : | Aluminum | Fin Style : | Vertical | ||
Length : | 90 mm | Width : | 81 mm | ||
Height : | 80 mm | Designed for : | SSR |
Technical/Catalog Information | HS122DR-CC2450W3U |
Vendor | Crydom Co. |
Category | Relays |
Mounting Type | DIN Rail |
Termination Style | Screw Terminal |
Package / Case | PUK with Heatsink |
Circuit | SPST-NO (1 Form A) |
Load Current | 45A |
Voltage - Input | 4 ~ 32VDC |
Voltage - Load | 24 ~ 280 V |
Output Type | AC, Zero Cross |
On-State Resistance | - |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | HS122DR CC2450W3U HS122DRCC2450W3U |
