Product Details

Description



Features:

• Devices QML Qualified in Accordance with MIL-PRF-38535
• Detailed Electrical and Screening Requirements are Contained in SMD# 5962-95818 and Intersil' QM Plan
- Radiation Hardened CMOS Process
- Total Dose 1 x 105 RAD (Si)
- Transient Upset > 1 x 108 RAD (Si)/s
- Latch-Up Immune EPI-CMOS > 1 x 1012 RAD (Si)/s
• Low Power Dissipation
• High Noise Immunity
• Single Power Supply +5V
• Low Input Load Current
• 8-Bit Data Register and Buffer
• Asynchronous Register Clear
• Service Request Flip-Flop for Interrupt Generation
• Three-State Outputs
• Bus-Compatible with HS-80C85RH CPU
• Electrically Equivalent to Sandia SA3026
• Military Temperature Range -55 to +125

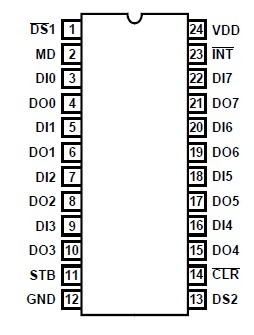

Pinout

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +7.0V
Input, Output or I/O Voltage . . . . . . . . . . . .GND-0.3V to VDD+0.3V
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+175
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . +300
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1


Description

The Intersil HS-82C12RH is a radiation hardened 8-bit input/ output port designed for use with the HS-80C85RH radiation hardened microprocessor. It is manufactured using a selfaligned, junction-isolated EPI-CMOS process and features three-state output buffers and device selection and control logic. A service request flip-flop is included for the generation and control of interrupts to the microprocessor. The device can be used in implement many of the peripheral and input/output functions of a microcomputer system. The HS-82C12RH is pinout- and function- compatible with industry-standard 8212 devices.
