Product Details

Description



Features:

• Devices QML Qualified in Accordance With MIL-PRF-38535
• Detailed Electrical and Screening Requirements are
Contained in SMD# 5962-95824 and Intersil' QM Plan
• Radiation Hardened EPI-CMOS
- Parametrics Guaranteed 1 x 105 RAD(Si)
- Transient Upset > 1 x 108 RAD(Si)/s
- Latch-up Free > 1 x 1012 RAD(Si)/s
• Low Standby Current 500mA Max
• Low Operating Current 5.0A/MHz (X1 Input)
• Electrically Equivalent to Sandia SA 3000
• 100% Software Compatible with INTEL 8085
• Operation from DC to 2MHz, Post Radiation
• Single 5 Volt Power Supply
• On-Chip Clock Generator and System Controller
• Four Vectored Interrupt Inputs
• Completely Static Design
• Self Aligned Junction Isolated (SAJI) Process
• Military Temperature Range -55 to +125


Pinout

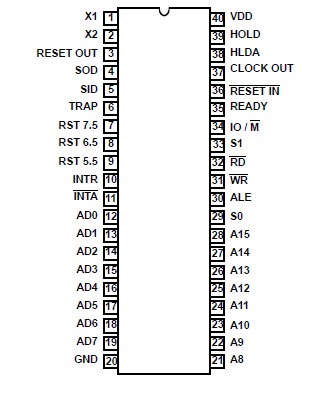

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+7.0V
Input, Output or I/O Voltage . . . . . . . . . . . . GND-0.3V to VCC+0.3V
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
Junction Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . .  +175
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . .+300
Typical Derating Factor. . . . . . . . . . .. 2.0mA/MHz Increase in IDDOP
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class 1


Description

The HS-80C85RH is an 8-bit CMOS microprocessor fabricated using the Intersil radiation hardened self-aligned junction isolated (SAJI) silicon gate technology. Latch-up free operation is achieved by the use of epitaxial starting material to eliminate the parasitic SCR effect seen in conventional bulk CMOS devices.

The HS-80C85RH is a functional logic emulation of the HMOS 8085 and its instruction set is 100% software compatible with the HMOS device. The HS80C85RH is designed for operation with a single 5 volt power supply. Its high level of integration allows the construction of a radiation hardened microcomputer system with as few as three ICs (HS- 80C85RH CPU, HS83C55RH ROM I/O, and the HS-81C55/ 56RH RAM I/O.
