HS-565ARH

Features: • Devices QML Qualified in Accordance with MIL-PRF-38535• Detailed Electrical and Screening Requirements are Contained in SMD# 5962-96755 and Harris' QM Plan• DAC and Reference on a Single Chip• Pin Compatible with AD-565A and HI-565A• Very High Speed: Settl...

product image

HS-565ARH Picture
See larger image
SeekIC No. : 004365808 Detail

HS-565ARH: Features: • Devices QML Qualified in Accordance with MIL-PRF-38535• Detailed Electrical and Screening Requirements are Contained in SMD# 5962-96755 and Harris' QM Plan• DAC and Ref...

HS-565ARH Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HS-565ARH
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Devices QML Qualified in Accordance with MIL-PRF-38535
• Detailed Electrical and Screening Requirements are Contained in SMD# 5962-96755 and Harris' QM Plan
• DAC and Reference on a Single Chip
• Pin Compatible with AD-565A and HI-565A
• Very High Speed: Settles to 0.50 LSB in 500ns Max
• Monotonicity Guaranteed Over Temperature
• 0.50 LSB Max Nonlinearity Guaranteed Over Temperature
• Low Gain Drift (Max., DAC Plus Reference) 50ppm/oC
• Total Dose Hardness to 100K RAD
• ±0.75 LSB Accuracy Guaranteed Over Temperature (±0.125 LSB Typical at +25oC)


Application

• High Speed A/D Converters
• Precision Instrumentation
• Signal Reconstruction


Pinout

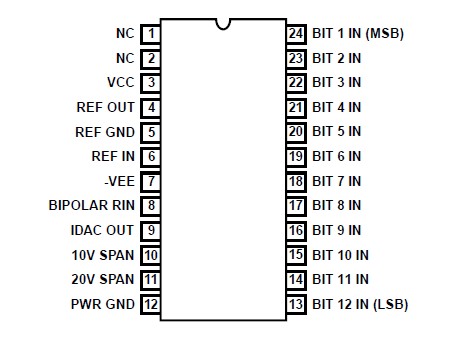

Connection Diagram


Specifications

VCC to Power Ground . . . . . . . . . . . . . . . . . . . . . . . . . . 0V to +18V
VEE to Power Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . 0V to -18V
Voltage on DAC Output (Pin 9). . . . . . . . . . . . . . . . . . .  -3V to +12V
Digital Input (Pins 13 - 24) to Power Ground . . . . . . . . . .-1V to +7V
Ref In to Reference Ground . . . . . . . . . . . . . . . . . . . . . . . . . . ±12V
Bipolar Offset to Reference Ground . . . . . . . . . . . . . . . . . . . . ±12V
10V Span R to Reference Ground. . . . . . . . . . . . . . . . . . . . . .±12V
20V Span R to Reference Ground. . . . . . . . . . . . . . . . . . . . .  ±24V
Junction Temperature (TJ) (Max) . . . . . . . . . . . . . . . . . . . . +175
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . .+300


Description

The HS-565ARH is a fast, radiation hardened 12-bit current output, digital-to-analog converter. The monolithic chip includes a precision voltage reference, thin-film R-2R ladder, reference control amplifier and twelve high-speed bipolar current switches.

The HS-565ARH Harris Semiconductor Dielectric Isolation process provides latch-up free operation while minimizing stray capacitance and leakage currents, to produce an excellent combination of speed and accuracy. Also, ground currents are minimized to produce a low and constant current through the ground terminal, which reduces error due to code-dependent ground currents.

HS-565ARH die are laser trimmed for a maximum integral nonlinearity error of ±0.25 LSB at +25oC. In addition, the low noise buried zener reference is trimmed both for absolute value and minimum temperature coefficient.
