HS-4423RH

Features: • Electrically Screened to DESC SMD # 5962-99511• QML Qualified per MIL-PRF-38535 Requirements• Radiation Environment- Total Dose (Max). . . . . . . . . . . . . . . . . .3 x 105 RAD(SI)- Latch-Up Immune- Low Dose Rate Immune• IPEAK . . . . . . . . . . . . . . . . ...

product image

HS-4423RH Picture
See larger image
SeekIC No. : 004365785 Detail

HS-4423RH: Features: • Electrically Screened to DESC SMD # 5962-99511• QML Qualified per MIL-PRF-38535 Requirements• Radiation Environment- Total Dose (Max). . . . . . . . . . . . . . . . . ....

HS-4423RH Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HS-4423RH
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Electrically Screened to DESC SMD # 5962-99511
• QML Qualified per MIL-PRF-38535 Requirements
• Radiation Environment
- Total Dose (Max). . . . . . . . . . . . . . . . . .3 x 105 RAD(SI)
- Latch-Up Immune
- Low Dose Rate Immune
• IPEAK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >2A (Typ)
• Matched Rise and Fall Times (CL = 4300pF) . . . 75ns (Max)
• Low Voltage Lock-Out Feature
- HS-4423RH . . . . . . . . . . . . . . . . . . . . . . . . . . . . <10.0V
- HS-4423BRH . . . . . . . . . . . . . . . . . . . . . . . . . . . . <7.5V
• Wide Supply Voltage Range. . . . . . . . . . . . . . . 12V to 18V
• Prop Delay . . . . . . . . . . . . . . . . . . . . . . . . . . .250ns (Max)
• Consistent Delay Times with VCC Changes
• Low Power Consumption
- 40mW with Inputs High
- 20mW with Inputs Low
• Low Equivalent Input Capacitance . . . . . . . . . .3.2pF (Typ)
• ESD Protected . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4000V




Application

• Switching Power Supplies
• DC/DC Converters
• Motor Controllers




Pinout

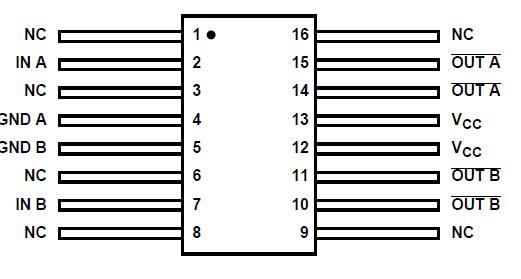

Connection Diagram




Description

The Radiation Hardened HS-4423RH and the HS-4423BRH are inverting, dual, monolithic high-speed MOSFET drivers designed to convert TTL level signals into high current outputs at voltages up to 18V.

The inputs of HS-4423RH are TTL compatible and can be directly driven by our HS-1825ARH PWM device or by our ACS/ACTS and HCS/HCTS type logic devices. The fast rise times and high current outputs allow very quick control of high gate capacitance power MOSFETs, like our Rad Hard FS055, in high frequency applications.

The high current outputs minimize power losses in MOSFETs by rapidly charging and discharging the gate capacitance. The output stage incorporates a low voltage lock-out circuit that puts the outputs into a three-state mode when the supply voltage drops below 10V for the HS-4423RH and 7.5V for the HS-4423BRH.

Constructed with the Intersil dielectrically isolated Rad Hard Silicon Gate (RSG) BiCMOS process, HS-4423RH are immune to Single Event Latch-up and have been specifically designed to provide highly reliable performance in harsh radiation environments
