HS-4080ARH

Features:

• Electrically Screened to SMD # 5962-99617
• QML Qualified per MIL-PRF-38535 Requirements
• Radiation Environment
- Gamma Dose . . . . . . . . . . . . . . . . . 300kRAD(Si) (Max)
- Latch-up Immune RSG DI Process
• Drives N-Channel FET Full Bridge Including High Side Chop Capability
• Bootstrap Supply Max Voltage to 95VDC
• TTL Comparator Input Levels
• Drives 1000pF Load with Rise and Fall Times of 50ns
• User-Programmable Dead Time
• Charge-Pump and Bootstrap Maintain Upper Bias Supplies
• DIS (Disable) Pin Pulls Gates Low
• Operates From Single Supply . . . . . . . . . . . . . 12V to 18V
• Low Power Consumption
• Undervoltage Protection




Application

• Full Bridge Power Supplies
• PWM Motion Control

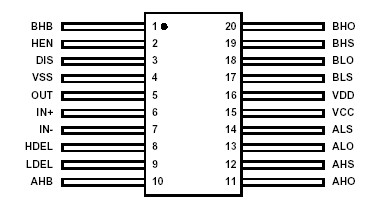

Pinout






Description

The HS-4080ARH is a monolithic, high frequency, medium voltage Full Bridge N-Channel FET Driver IC. The device includes a TTL-level input comparator, which can be used to facilitate the hysteresis and PWM modes of operation. Its HEN (high enable) lead can force current to freewheel in the bottom two external power MOSFETs, maintaining the upper power MOSFETs off. It is well suited for use in distributed DC power supplies and DC to DC converters, since it can switch at high frequencies. These devices can also drive medium voltage motors, and two HS-4080ARHs can be used to drive high performance stepper motors, since the short minimum on-time can provide fine micro-stepping capability. Short propagation delays maximize control loop crossover frequencies and dead-times, which can be adjusted to near zero to minimize distortion, resulting in precise control of the driven load. Constructed with the Intersil dielectrically isolated Rad Hard Silicon Gate (RSG) process, these HS-4080ARH devices are immune to Single Event Latch-up and have been specifically designed to provide highly reliable performance in harsh radiation environments. Complete your design with radiation hardened MOSFETs from Intersil. Specifications for Rad Hard QML devices are controlled by the Defense Supply Center in Columbus (DSCC). The SMD numbers listed here must be used when ordering. Detailed Electrical Specifications for these devices are contained in SMD 5962-99617. A HS-4080ARH hot-link is provided on our homepage for downloading. http://www.intersil.com/spacedefense/space.htm
