Product Details

Description



Features:

• This Circuit is Processed in Accordance to Mil-Std- 883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• Radiation Hardened
- Functional Total Dose Exceeds 1 x 105 RAD Si
• Pin for Pin Compatible with Intersil HI-3XX Series Analog Switches
• Analog Signal Range 15V
• Low Leakage
• Low RON
• No Latch Up
• Versions for 5V and 15V Digital Systems
• Low Operating Power
• Military Temperature Range -55 to +125


Application

• Sample and Hold i.e. Low Leakage Switching
• Op Amp Gain Switching i.e. Low ON Resistance
• Switched Capacitor Filters
• Low Level Switching Circuits
• Satellites
• Nuclear Reactor Controls
• Military Environments


Pinout

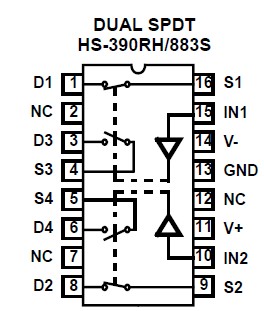

Connection Diagram




Specifications

Supply Voltage Between V+ and V- . . . . . . . . . . . . . . . . . . . . .+44V
+VSUPPLY to Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+22V
-VSUPPLY to Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-22V
Analog Input Overvoltages:
    +VS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +VSUPPLY +1.5V
    -VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-VSUPPLY - 1.5V
Digital Input Overvoltage:
    +VA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +VSUPPLY +4V
    -VA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -VSUPPLY -4V
Peak Current, S or D Pulsed at 1ms, 10% Duty Cycle Max . . . 40mA
Continuous Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10mA
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +175
Lead Temperature (soldering 10s)  . . . . . . . . . . . . . . . . . . +300


Description

The HS-390RH/883S family of analog switches are monolithic devices fabricated using Radiation Hardened CMOS technology and the Intersil dielectric isolation process for latch-up free operation. Improved total dose hardness is obtained by layout (thin oxide tabs extending to a channel stop) and processing (hardened gate oxide). HS-3XXRH offer low-resistance switching performance for analog voltages up to the supply rails. "ON" resistance is low and stays reasonably constant over the full range of operating voltage and current. "ON" resistance also stays reasonably constant when exposed to radiation, being typically 30W pre-rad and 35W post 100K RAD-Si. All devices provide break-before-make switching.

The 6 devices in this switch HS-390RH series are differentiated by type of switch action, pinout and digital logic levels. The HS-302/ 303/384/390RH/883S switches have 5V digital inputs while the HS-306/307RH/883S switches have 15V digital inputs. All devices are available in Ceramic Flatpack and SBDIP packages. The HS-3XXRH/883S switches can directly replace the HI-3XX series devices.
