Features:

• Devices QML Qualified in Accordance with MIL-PRF-38535
• Detailed Electrical and Screening Requirements are Contained in SMD# 5962-9XXXX and Intersil' QM Plan
• Radiation Hardened EPI-CMOS
    - Total Dose 1 x 105 RAD(Si)
    - Latch-Up Immune > 1 x 1012 RAD (Si)/s (Note 1)
• Low Propagation Delay Time
    - Typical CMOS to TTL Pre-RAD 40ns
    - Typical CMOS to TTL Post 100K RAD 40ns
    - Typical TTL to CMOS Pre-RAD 50ns
    - Typical TTL to CMOS Post 100K RAD 50ns
• Low Standby Power
• +10V CMOS and +5V TTL Power Supply Inputs
• Eight Non-inverting Three-State Input/Output Channels
• No External TTL Input Pull-Up Resistors Required
• High TTL Sink Current
• Equivalent to Sandia SA2996
• Military Temperature Range -55 to +125


Pinout

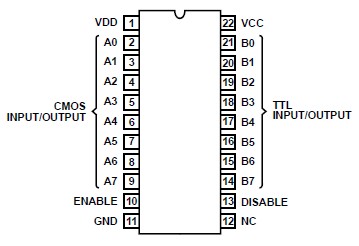

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+11.0V
I/O Voltage Applied. . . . . . . . . . . . . . . . . .  GND-0.3V to VDD+0.3V
Storage Temperature Range . . . . . . . . . . . . . . . .   -65 to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +175
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . .  +300
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1


Description

The Intersil HS-3374RH is a radiation hardened 8-bit bidirectional level converter designed to interface CMOS logic levels with TTL logic levels in radiation hardened bus oriented systems. It is fabricated using a radiation hardened EPI-CMOS process and features eight parallel bidirectional buffer/level converters.

Two control inputs of HS-3374RH, ENABLE and DISABLE, are used to determine the direction of data flow, and to set both the in puts and outputs in the high impedance state. The control inputs may be driven by either TTL or CMOS logic drivers capable of sinking one standard TTL load.

The HS-3374RH is a non-inverting version of the industry standard CD40116. The non-inverting outputs of the HS-3374RH reduce PC board chip count by eliminating the need to restore data back to a non-inverted format.
