Position: Home  > All Categories> Integrated Circuits (ICs) > HS-26CT32RH-T

HS-26CT32RH-T

Features: • QML Class T, Per MIL-PRF-38535• Radiation Performance - Gamma Dose . . . . . . . . . . . . . . . . . . . . 1 x 105 RAD(Si) - SEU and SEL . . . . . . . . . . Immune to 100MeV/mg/cm2• EIA RS-422 Compatible Inputs• TTL Compatible Enable Inputs• Input Fail Saf...

product image

HS-26CT32RH-T Picture
See larger image
SeekIC No. : 004365739 Detail

HS-26CT32RH-T: Features: • QML Class T, Per MIL-PRF-38535• Radiation Performance - Gamma Dose . . . . . . . . . . . . . . . . . . . . 1 x 105 RAD(Si) - SEU and SEL . . . . . . . . . . Immune to 100MeV/...

HS-26CT32RH-T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HS-26CT32RH-T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• QML Class T, Per MIL-PRF-38535
• Radiation Performance
    - Gamma Dose . . . . . . . . . . . . . . . . . . . . 1 x 105 RAD(Si)
    - SEU and SEL . . . . . . . . . . Immune to 100MeV/mg/cm2
• EIA RS-422 Compatible Inputs
• TTL Compatible Enable Inputs
• Input Fail Safe Circuitry
• High Impedance Inputs when Disabled or Powered Down
• Low Power Dissipation 138mW Standby (Max)
• Single 5V Supply
• Full -55 to 125 Military Temperature Range


Pinout

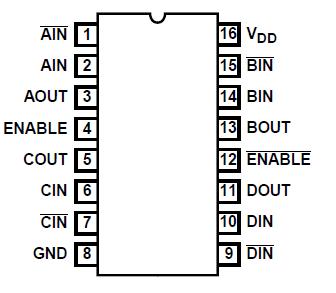

Connection Diagram


Description

Intersil's Satellite Applications FlowTM (SAF) HS-26CT32RH-T are fully tested and guaranteed to 100kRAD total dose. These QML Class T devices are processed to a standard flow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability.

The Intersil HS-26CT32RH-T is a Quad Differential Line Receiver designed for digital data transmission over balanced lines and meets the requirements of EIA Standard RS-422. Radiation Hardened CMOS processing assures low power consumption, high speed, and reliable operation in the most severe radiation environments.

The HS-26CT32RH-T has an input sensitivity of 200mV (typ.) over the common mode input voltage range of ±7V. The receivers are also equipped with input fail safe circuitry, which causes the outputs to go to a logic "1" when the inputs are open. TTL compatible Enable and Disable functions are common to all four receivers.
