HS-26CT31RH-T

Features: • QML Class T, Per MIL-PRF-38535• Radiation Performance - Gamma Dose . . . . . . . . . . . . . . . . . . . . 1 x 105 RAD(Si) - SEU and SEL . . . . . . . . . . Immune to 100MeV/mg/cm2• EIA RS-422 Compatible Outputs (Except for IOS)• TTL Compatible Inputs• Hig...

product image

HS-26CT31RH-T Picture
See larger image
SeekIC No. : 004365737 Detail

HS-26CT31RH-T: Features: • QML Class T, Per MIL-PRF-38535• Radiation Performance - Gamma Dose . . . . . . . . . . . . . . . . . . . . 1 x 105 RAD(Si) - SEU and SEL . . . . . . . . . . Immune to 100MeV/...

HS-26CT31RH-T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HS-26CT31RH-T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• QML Class T, Per MIL-PRF-38535
• Radiation Performance
    - Gamma Dose . . . . . . . . . . . . . . . . . . . . 1 x 105 RAD(Si)
    - SEU and SEL . . . . . . . . . . Immune to 100MeV/mg/cm2
• EIA RS-422 Compatible Outputs (Except for IOS)
• TTL Compatible Inputs
• High Impedance Outputs when Disabled or Powered Down
• Low Power Dissipation 2.75mW Standby (Max)
• Single 5V Supply
• Low Output Impedance 10 or Less
• Full -55 to 125 Military Temperature Range


Pinout

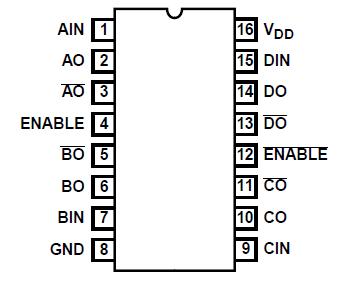

Connection Diagram


Description

Intersil's Satellite Applications Flow™ (SAF) HS-26CT31RH-T  are fully tested and guaranteed to 100kRAD total dose. These QML Class T devices are processed to a standard flow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability.

The Intersil HS-26CT31RH-T is a Quad Differential Line Driver designed for digital data transmission over balanced lines and meets the requirements of EIA Standard RS-422. Radiation Hardened CMOS processing assures low power consumption, high speed, and reliable operation in the most severe radiation environments.

The HS-26CT31RH-T accepts TTL inputs and converts them to RS-422 compatible outputs. This circuit uses special outputs that enable the drivers to power down without loading down the bus. Enable and disable pins allow several devices to be connected to the same data source and addressed independently.
