HS-26CLV31RH

Features:

• Electrically Screened to SMD # 5962-96663
• QML Qualified per MIL-PRF-38535 Requirements
• 1.2 Micron Radiation Hardened CMOS
- Total Dose. . . . . . . . . . . . . . . . . . . . . 300 krad(Si)(Max)
- Single Event Upset LET . . . . . . . . . . .100MeV/mg/cm2)
- Single Event Latch-up Immune
• Extremely Low Stand-by Current . . . . . . . . . 100µA (Max)
• Operating Supply Range . . . . . . . . . . . . . . . . 3.0V to 3.6V
• CMOS Level Inputs . . . . VIH > (.7)(VDD); VIL < (.3)(VDD)
• Differential Outputs. . . . . . . . . . . VOH > 1.8V; VOL < 0.5V
• High Impedance Outputs when Disabled or Powered Down
• Low Output Impedance . . . . . . . . . . . . . . . . . 10Ω or Less
• Full -55 to 125 Military Temperature Range

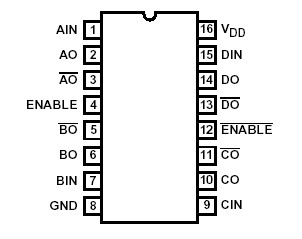

Pinout






Description

The Intersil HS-26CLV31RH is a radiation hardened 3.3V quad differential line driver designed for digital data transmission over balanced lines, in low voltage, RS-422 protocol applications. CMOS processing assures low power consumption, high speed, and reliable operation in the most severe radiation environments. The HS-26CLV31RH accepts CMOS level inputs and converts them to differential outputs. Enable pins allow several devices to be connected to the same data source and addressed independently. The device has unique outputs that become high impedance when the driver is disabled or powered-down, maintaining signal integrity in multi-driver applications. Specifications Specifications for Rad Hard QML devices are controlled by the Defense Supply Center in Columbus (DSCC). The SMD numbers listed here must be used when ordering. Detailed Electrical Specifications for HS-26CLV31RH are contained in SMD 5962-96663.
