Product Details

Description



Features:

• QML Class T, Per MIL-PRF-38535
• Radiation Performance
    - Gamma Dose () 1 x 105 RAD(Si)
    - No Latch-Up, Dielectrically Isolated Device Islands
• Improved rDS(ON) Linearity
• Improved Access Time 1.5 s (Max) Over Temp and Rad
• High Analog Input Impedance 500MW During Power Loss (Open)
• ±35V Input Over Voltage Protection (Power On or Off)
• Excellent in Hi-Rel Redundant Systems
• Break-Before-Make Switching


Pinout

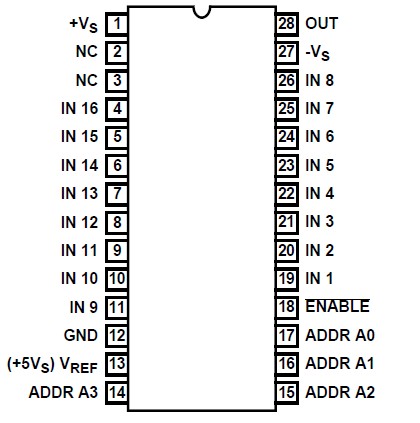

Connection Diagram


Description

Intersil's Satellite Applications FlowTM (SAF) devices HS-1840ARH-T are fully tested and guaranteed to 100kRAD Total Dose. These QML Class T devices are processed to a standard flow intended to meet the cost and shorter lead-time needs of large volume satellite manufacturers, while maintaining a high level of reliability.

The HS-1840ARH-T is a Radiation Hardened, monolithic 16 channel multiplexer constructed with the Intersil Rad-Hard Silicon Gate, Dielectric Isolation process. It is designed to provide a high input impedance to the analog source if device power fails (open), or the analog signal voltage inadvertently exceeds the supply by up to ±35V, regardless of whether the device HS-1840ARH-T is powered on or off. Selection of one of sixteen channels is controlled by a 4-bit binary address plus an Enable-Inhibit input, which conveniently controls the ON/OFF operation of several multiplexers in a system. All inputs have electrostatic discharge protection.
