Product Details

Description



Features:

• Electrically Screened to SMD # 5962-98518
• QML Qualified per MIL-PRF-38535 Requirements
• Radiation Environment
      - Total Dose. . . . . . . . . . . . . . . . . . . . . . . 3 x 105 RAD(Si)
      - SEL. . . . . . . . . . . . . . None (Bonded Wafer DI Process)
• Wide 3dB Bandwidth (Typ) . . . . . . . . . . . . . . . . . . 360MHz
• High Slew Rate (Typ) . . . . . . . . . . . . . . . . . . . . 1000V/µS
• High Output Current (Typ) . . . . . . . . . . . . . . . . . . . . 60mA
• Low Supply Current (Typ). . . . . . . . . . . . . . . . . . . . 5.9mA
• Output Enable/Disable Time (Typ) . . . . . . . . . 180ns/35ns
• Upgrade for CLC410/411


Application

• Multiplexing Flash A/D Drivers
• High Speed Signal Switching and Routing
• Pulse and Video Amplifiers
• Wideband Amplifiers
• Imaging Systems

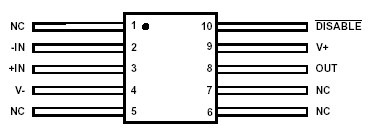

Pinout

Connection Diagram


Description

The Radiation Hardened HS-1410RH is a high speed, low power current feedback amplifier built with Intersil's proprietary complementary bipolar UHF-1 (DI, bonded wafer) process. This technology provides an immunity to Single Event Latch-up and the capability of highly reliable performance in any radiation environment. These devices are QML approved and are manufactured and screened in full compliance with MIL-PRF-38535.

This amplifier HS-1410RH features a TTL/CMOS compatible DISABLE control, pin 10, which when pulled low, reduces the supply current and forces the output into a high impedance state. This allows easy implementation of simple, low power multiplexing circuits in redundant spacecraft designs. The wide bandwidth and fast slew rate make these devices ideal for pulse and video amplifier and routing applications. The high output current and disable feature provide the perfect combination needed for A/D driver/multiplexer circuits.
