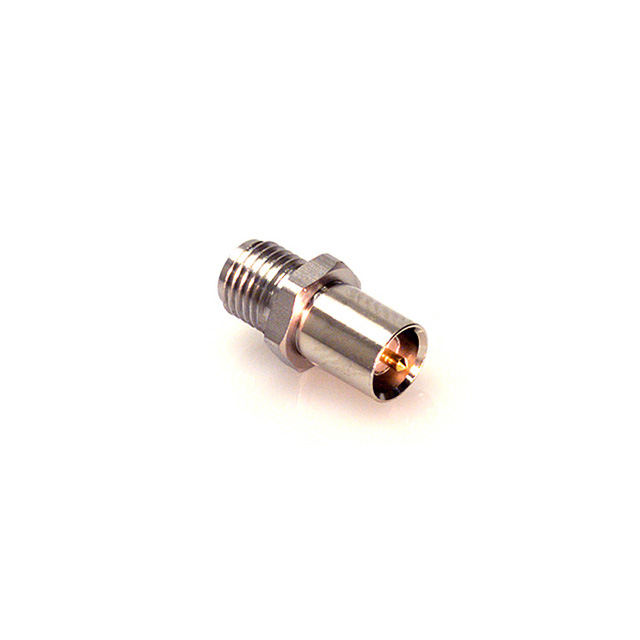

HRMJ-U.FLP

1. Low Profile: 1.9mm or 2.4mm Nom. Mated Height Height from the circuit board is 2.0mm or 2.5mm maximum when a plug (right angle) is mated to a receptacle, which ranks with world's smallest class.

2.Extremely Small Occupied Mounting Area
    In comparison with our SMT coaxial connectors E.FL series, the receptacle provides a reduction of approximately 18% of occupied mounting surface, which is only 7.7mm2.

3.Light Weight
    One of the world's lightest coaxial connectors. Receptacle: 15.7mg

4.Applicable Up to 6 GHz Frequency
    To meet the frequency requirements of a wide variety of miniature equipment, these connectors offer high frequency performance from DC to 6 GHz.

5.Board placement with automatic equipment Supplied on tape-and-reel packaging.

6.Use of Ultra-fine Teflon Cable
    From among the types of applicable cable, dia. 0.81mm(single shielded) ultra-fine Teflon coaxial cable has been made a standard specification in construction area. Refer to the following pages for different cable types.

7.Simple Removal of Connector
    The extraction jig permits simple removal of connectors.

8.User Friendly Mating Operation
    Tactile lock feeling ensures engagement even with this small size.
