HN58X2402SI

Features: ` Single supply: 1.8 V to 5.5 V` Two-wire serial interface (I2CTM serial bus*1)` Clock frequency: 400 kHz` Power dissipation: - Standby: 3 A (max) - Active (Read): 1 mA (max) - Active (Write): 3 mA (max)` Automatic page write: 8-byte/page` Write cycle time: 10 ms (2.7 V to 5.5 V)/15ms (1...

product image

HN58X2402SI Picture
See larger image
SeekIC No. : 004365052 Detail

HN58X2402SI: Features: ` Single supply: 1.8 V to 5.5 V` Two-wire serial interface (I2CTM serial bus*1)` Clock frequency: 400 kHz` Power dissipation: - Standby: 3 A (max) - Active (Read): 1 mA (max) - Active (Wri...

HN58X2402SI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN58X2402SI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single supply: 1.8 V to 5.5 V
`  Two-wire serial interface (I2CTM serial bus*1)
`  Clock frequency: 400 kHz
`  Power dissipation:
    -  Standby: 3 A (max)
    -  Active (Read): 1 mA (max)
    -  Active (Write): 3 mA (max)
`  Automatic page write: 8-byte/page
`  Write cycle time: 10 ms (2.7 V to 5.5 V)/15ms (1.8 V to 2.7 V)
`  Endurance: 105 Cycles (Page write mode)
`  Data retention: 10 Years
`  Small size packages: TSSOP 8-pin and SOP 8-pin
`  Shipping tape and reel
    - TSSOP 8-pin: 3,000 IC/reel
    -  SOP 8-pin: 2,500 IC/reel

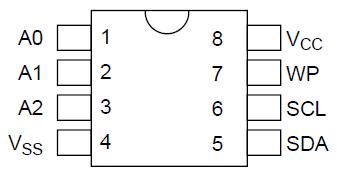

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage relative to VSS
VCC
0.6 to + 7.0
V
Input voltage relative to VSS
Vin
0.5*2 to +7.0*3
V
Operating temperature range*1
Topr
40 to +85
Storage temperature range
Tstg
65 to +125



Description

HN58X24xxSI series are two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM). They realize high speed, low power consumption and a high level of reliability by employing advanced MNOS memory technology and CMOS process and low voltage circuitry technology. They also have a 8-byte page programming function to make their write operation faster.
