HN58V257

Features: • Single 3 V supply• On-chip latches: address, data, CE , OE , WE • Automatic byte write: 15 ms max• Automatic page write (64 bytes): 15 ms max• Fast access time: 350 ns max• Low power dissipation: 20 mW/MHz typ (active) 110 W max (standby)• Data...

product image

HN58V257 Picture
See larger image
SeekIC No. : 004365043 Detail

HN58V257: Features: • Single 3 V supply• On-chip latches: address, data, CE , OE , WE • Automatic byte write: 15 ms max• Automatic page write (64 bytes): 15 ms max• Fast access t...

HN58V257 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN58V257
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3 V supply
• On-chip latches: address, data, CE , OE , WE
• Automatic byte write: 15 ms max
• Automatic page write (64 bytes): 15 ms max
• Fast access time: 350 ns max
• Low power dissipation:
   20 mW/MHz typ (active)
   110 W max (standby)
• Data polling, RDY/Busy
• Data protection circuit on power on/off
• Conforms to JEDEC byte-wide standard
• Reliable CMOS with MNOS cell technology
• 105 erase/write cycles (in page mode)
• 10 years data retention
• Write protection by RAS pin

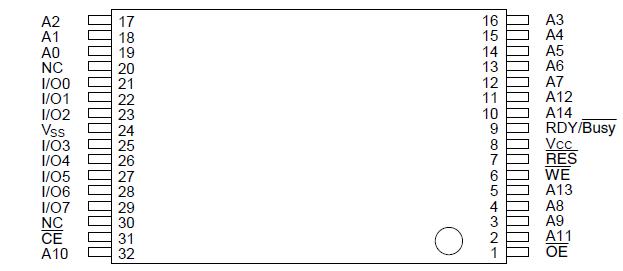

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage *1
VCC
0.6 to +7.0
V
Input voltage *1
VIN
0.5*2 to +7.0
V
Operating temperature range*3
Topr
0 to +70
°C
Storage temperature range
Tstg
55 to +125
°C
Notes:
1.With respect to VSS
2.Vin min = 2.5 V for pulse width 50 ns.
3. Including electrical characteristics and data retention



Description

The Hitachi HN58V257 is a electically erasable and programmable ROM organized as 32768-word ×8-bit. It realizes high speed, low power consumption, and a high level of reliability, employing advanced MNOS memory technology and CMOS process and circuitry technology. It also has a 64-byte page programming function to make its erase and write operations faster.
