HN58S256A

Features: ` Single supply: 2.2 to 3.6 V` Access time: 150 ns (max)/200 ns (max)` Power dissipation: - Active: 10 mW/MHz, (typ) - Standby: 36 mW (max)` On-chip latches: address, data, CE, OE, WE` Automatic byte write: 15 ms (max)` Automatic page write (64 bytes): 15 ms (max)` Data polling and Toggl...

product image

HN58S256A Picture
See larger image
SeekIC No. : 004365037 Detail

HN58S256A: Features: ` Single supply: 2.2 to 3.6 V` Access time: 150 ns (max)/200 ns (max)` Power dissipation: - Active: 10 mW/MHz, (typ) - Standby: 36 mW (max)` On-chip latches: address, data, CE, OE, WE` Aut...

HN58S256A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN58S256A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single supply: 2.2 to 3.6 V
`  Access time: 150 ns (max)/200 ns (max)
`  Power dissipation:
    -  Active: 10 mW/MHz, (typ)
    -  Standby: 36 mW (max)
`  On-chip latches: address, data, CE, OE, WE
`  Automatic byte write: 15 ms (max)
`  Automatic page write (64 bytes): 15 ms (max)
`  Data polling and Toggle bit
`  Data protection circuit on power on/off
`  Conforms to JEDEC byte-wide standard
`  Reliable CMOS with MNOS cell technology
`  105 erase/write cycles (in page mode)
`  10 years data retention
`  Software data protection
`  Industrial versions (Temperatur range:40 to 85°C) are also available.


Pinout

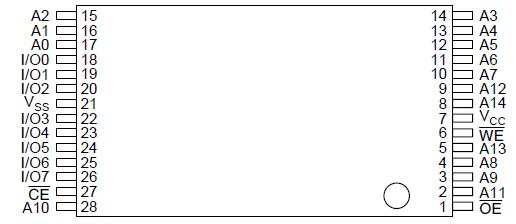

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Power supply voltage relative to VSS
VCC
0.6 to +4.6
V
Input voltage relative to VSS
Vin
0.5*1to +4.6*3
V
Operating temperature range*2
Topr
0 to +70
Storage temperature range
Tstg
55 to +125



Description

The Hitachi HN58S256A is a electrically erasable and programmable EEPROM's organized as 32768- word x8-bit employing advanced MNOS memory technology and CMOS process and circuitry technology. It also has a 64-byte page programming function to make the write operations faster.
