Product Details

Description

Features:

· Single 5 V supply
· On chip latches: address, data, CE , OE , WE
· Automatic byte write: 10 ms max
· Automatic page write (32 bytes): 10 ms max
· High speed: Access time 250 ns max
· Low power dissipation:
20 mW/MHz typ (active)
2.0 mW typ (standby)
· Data polling, RDY/Busy
· Data protection circuit on power on/off
· Conforms to JEDEC byte-wide standard
· Reliable CMOS with MNOS cell technology
· 105 erase/write cycles (in page mode)
· 10 years data retension
· Write protection by RES pin

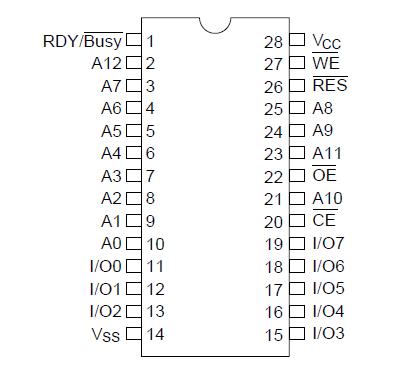

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Supply voltage_*1	V_CC	0.6 to +7.0	V
Input voltage_*1	V_in	0.5^*2 to +7.0	V
Operating temperature range^*3	T_opr	0 to +70	°C
Storage temperature range	T_stg	55 to +125	°C

Notes: 1. With respect to V_SS
2. Vin min = 3.0 V for pulse width 50 ns
3. Including electrical characteristics and data retention

Description

The Hitachi HN58C66 is a electrically erasable and programmable ROM organized as 8192-word× 8-bit. It realizes high speed, low power consumption, and a high level of reliability, employing advanced MNOS memory technology and CMOS process and circuitry technology. It also has a 32-byte page programming
function to make its erase and write operations faster.
