HN28F101

Features: • On-board power supply (VCC/VPP) VCC = 5 V ± 10% VPP = VSS to VCC (Read) VPP = 12.0 V ± 0.6 V (Erase/Program)• Fast access time 120 ns/150 ns/200 ns (max)• Programming function Byte programming Programming time: 25 s typ/byte Address, data, control latch function•...

product image

HN28F101 Picture
See larger image
SeekIC No. : 004364980 Detail

HN28F101: Features: • On-board power supply (VCC/VPP) VCC = 5 V ± 10% VPP = VSS to VCC (Read) VPP = 12.0 V ± 0.6 V (Erase/Program)• Fast access time 120 ns/150 ns/200 ns (max)• Programming f...

HN28F101 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN28F101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• On-board power supply (VCC/VPP)
    VCC = 5 V ± 10%
    VPP = VSS to VCC (Read)
    VPP = 12.0 V ± 0.6 V (Erase/Program)
• Fast access time 120 ns/150 ns/200 ns (max)
• Programming function Byte programming
    Programming time: 25 s typ/byte Address, data, control latch function
• On-board automatic erase function Chip erase
    ase time: 1 s typ
    dress, data, control latch function
    atus polling function
• Low power dissipation
    ICC = 10 mA typ (Read)
    ICC = 20 A max (Standby)
    IPP = 30 mA typ (Auto erase/Program)
    IPP = 20 A max (Read/Standby)
• Erasing endurance: 10,000 times
• Pin arrangement: 32-pin JEDEC standard
• Package
    32-pin DIP
    32-pin SOP
    32-pin TSOP
    32-pin PLCC


Pinout

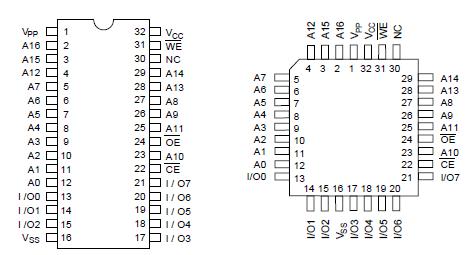

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
All input and output voltage*1
Vin, Vout
0.6*2 to +7.0
V
VCC voltage*1
VCC
0.6 to +14.0
V
VSS voltage*1
VSS
0.6 to +7.0
V
Operating temperature range
Topr
0 to +70
Storage temperature range
Tstg
55 to +125
Storage temperature under bias
Tbias
10 to +80



Description

The Hitachi HN28F101 is a 131072-word x 8-bit CMOS flash Memory, realizing on-board programming. It programs or erases data with only on-board power supply (12 V VPP supply/5 V VCC supply). It programs data with fast programming algorithm by command inputs. It has two types of erase algorithm : automatic erase and fast erase by command inputs. Automatic erase function can erase data automatically without external control only by inputting trigger pulse and inform erase completion to CPU by status polling. The HN28F101 can control programming erase algorithm externally.
