Item |
Features |
ROM |
32K x 8-bit |
RAM |
1K x 8-bit |
Instruction Cycle |
With variable instruction execution time function
1.66ms / 3.33ms / 26.6ms (with main system clock : 7.2MHz)
366.2ms (with sub-system clock : 32.768KHz) |
Instruction Set |
MCS-51 Micro-controller Compatible Instruction Set |
I/O Port |
CMOS I/O : 62 pins (including 4-open drain ports) |
A/D Converter |
8-bit resolution x 8-channels |
Serial Interface |
3-wire serial I/O mode : 2 channels
Full duplex UART : 1 channel |
Timer/Counter |
Five 16-bit timers/event counters
Dedicated Watchdog timer |
Buzzer(Beep) Output |
1.2KHz (fx/6000), 2.4KHz (fx/3000), 4.5KHz (fx/1600), 8.0KHz (fx/900) |
Interrupt Source |
7 External, 11 Internal Sources |
PLL
Frequency
Synthesizer |
Division Mode |
Direct division mode (VCOL pin)
Pulse swallow mode (VCOH and VCOL pins) |
|
Reference
Frequency |
13 types selected by program
1, 1.25, 2.5, 3, 5, 6.25, 9, 10, 12.5, 18, 20, 25, 50KHz |
|
Charge Pump |
Error out : EO pin |
|
Phase Detector |
Unlock detectable by program |
Frequency Counter |
Frequency Measurement
AMIFC pin : for 450KHz count
FMIFC pin : for 10.7MHz count |
Standby Function |
Idle mode
Power-down mode |
Reset |
Reset by RESET pin
Reset by Vdet circuit
Vdet circuit: Detection of less than 2.7V (Normal operation mode) |
Power Supply Voltage |
VDD = 4.5V to 5.5V (with PLL operating)
VDD > 1.8V (Data retention mode) |
System Clock |
Main system clock : 7.2MHz
Sub-system clock : 32.768KHz |
Package |
80 pin plastic MQFP |

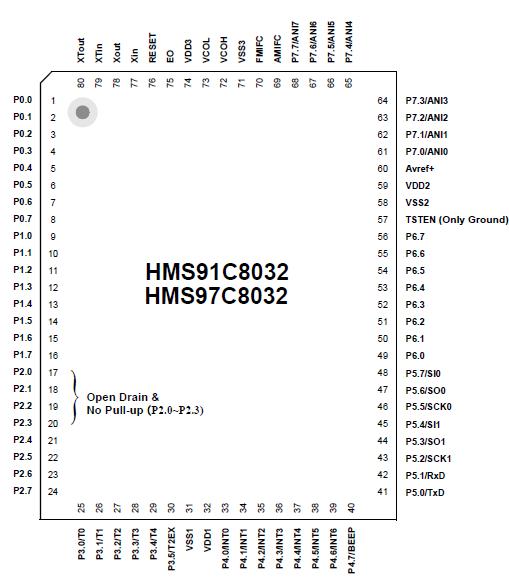

The HMS91C8032 and the HMS97C8032 are a member of the HMS9XC8032 series. This devices are the Digital Tuning System(DTS) with PLL. It has extended Intel 8051 core, 32Kbytes one-time programmable(OTP) ROM. Because this device can be programmed by user, it is suited for applications such as the small-scale production of many different products and rapid development and time-to-market of new products.
HMS97C8032 Data Sheet
