HMS87C1304A

Features: • 4K/2K Bytes On-chip Program Memory• 128 Bytes of On-chip Data RAM (Included stack memory)• Instruction Cycle Time:- 250nS at 8MHz• 19 Programmable I/O pins (LED direct driving can be source and sink)• 2.0V to 5.5V Wide Operating Range• One 8-bit A/D ...

product image

HMS87C1304A Picture
See larger image
SeekIC No. : 004364882 Detail

HMS87C1304A: Features: • 4K/2K Bytes On-chip Program Memory• 128 Bytes of On-chip Data RAM (Included stack memory)• Instruction Cycle Time:- 250nS at 8MHz• 19 Programmable I/O pins (LED d...

HMS87C1304A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMS87C1304A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4K/2K Bytes On-chip Program Memory
• 128 Bytes of On-chip Data RAM (Included stack memory)
• Instruction Cycle Time:
- 250nS at 8MHz
• 19 Programmable I/O pins (LED direct driving can be source and sink)
• 2.0V to 5.5V Wide Operating Range
• One 8-bit A/D Converter
- 8 channels
• One 8-bit Basic Interval Timer
• Two 8-bit Timer / Counters
• One 10-bit High Speed PWM Outputs
• Watchdog timer
• Seven Interrupt sources
- External input: 2
- A/D Conversion: 1
- Timer: 4
• One Programmable Buzzer Driving port
- 500Hz ~ 130kHz
• Oscillator Type
- Crystal
- Ceramic Resonator
- RC-oscillation ( C can be omit )
• Power-On Reset
• Noise Immunity Circuit
- Power Fail Processor
• Power Down Mode
- STOP mode
- Wake-up Timer mode


Pinout

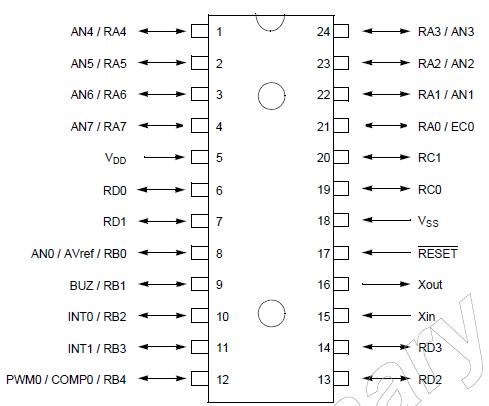

Connection Diagram


Specifications

Supply voltage ..................................................... -0.3 to +6.0 V
Storage Temperature ...........................................-40 to +125
Voltage on any pin with respect to Ground (VSS) -0.3 to VDD+0.3
Maximum current out of VSS pin ..................................... 200 mA
Maximum current into VDD pin .........................................150 mA
Maximum current sunk by (IOL per I/O Pin) ........................25 mA
Maximum output current sourced by (IOH per I/O Pin).........15 mA
Maximum current (IOL) ..................................................150 mA
Maximum current (IOH)................................................. 100 mA


Description

The HMS87C1304A and HMS87C1302A are an advanced CMOS 8-bit microcontroller with 4K/2K bytes of EPROM. The HYUNDAI MicroElectronics HMS87C1304A and HMS87C1302A are powerful microcontroller which provides a highly flexible and cost effective solution to many small applications such as controller for battery charger. They provide the following standard features: 4K/2K bytes of EPROM, 128bytes of RAM, 8-bit timer/ counter, 8-bit A/D converter, 10-bit high speed PWM output, programmable buzzer driving port, power-on reset circuit, onchip oscillator and clock circuitry. In addition, they support power saving modes to reduce power consumption.
