Features: · Part identification- HMS1M32M8V : SIMM design- HMS1M32Z8V : ZIP design® Pin-Compatible with the HMS1M32M8V· Fast access times : 10, 12ns and 15ns· High-density 4MByte design· High-reliability high-speed design· Single + 3.3V ±0.3V power supply· Easy memory expansion /CE and /OE fun...
HMS1M32M8V: Features: · Part identification- HMS1M32M8V : SIMM design- HMS1M32Z8V : ZIP design® Pin-Compatible with the HMS1M32M8V· Fast access times : 10, 12ns and 15ns· High-density 4MByte design· High-re...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
PARAMETER | SYMBOL | RATING |
Voltage on Any Pin Relative to Vss | VIN,OUT | -0.5V to +4.6V |
Voltage on Vcc Supply Relative to Vss | VCC | -0.5V to +4.6V |
Power Dissipation | PD | 8W |
Storage Temperature | TSTG | -65°C to +150°C |
Operating Temperature | TA | 0°C to +70°C |

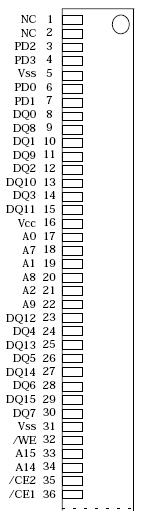

The HMS1M32M8V is a high-speed static random access memory (SRAM) module containing 1,048,576 words organized in a x32-bit configuration. The module consists of eight 1M x 4 SRAMs mounted on a 72-pin, doublesided, FR4-printed circuit board.
PD0 to PD3 identify the module HMS1M32M8V's density allowing interchangeable use of alternate density, industry- standard modules. Eight chip enable inputs, (/CE1, /CE2, /CE3 and /CE4) are used to enable the module's 4 bytes independently. Output enable (/OE) and write enable(/WE) can set the memory input and output.
Data is written into the SRAM memory HMS1M32M8V when write enable (/WE) and chip enable (/CE) inputs are both LOW. Reading is accomplished when /WE remains HIGH and /CE and output enable (/OE) are LOW.
For reliability, this SRAM module HMS1M32M8V is designed as multiple power and ground pin. All module components may be powered from a single +3.3V DC power supply and all inputs and outputs are fully LVTTL-compatible.
