Features:

• (M) NTSC and (B, D, G, H, I, M, N, NC) PAL Operation
• BT.601 and Square Pixel Operation
• Digital Input Formats
- 8-Bit, 16-Bit 4:2:2 YCbCr
- 8-Bit BT.656
• Composite and Y/C Analog Outputs
• Flexible Video Timing Control
- Timing Master or Slave
- Selectable Polarity on Each Control Signal
- Programmable Blank Output Timing
• "Sliced" VBI Data Support
- Closed Captioning
- Widescreen Signalling (WSS)
• Three 2x Oversampling, 10-Bit DACs
- Fast I2C Interface


Application

• DVD Players
• Video CD Players
• Digital VCRs
• Multimedia PCs


Pinout

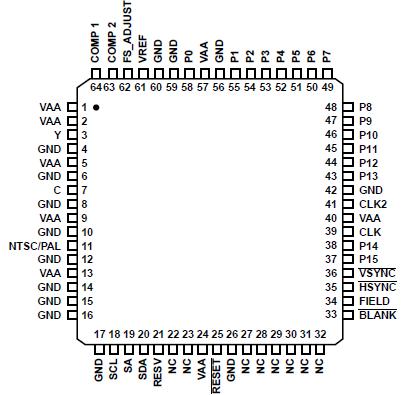

Connection Diagram


Specifications

Supply Voltage (VAA to GND) . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.0V
All Signal Pins . . . . . . . . . . . . . . . . . . . (GND 0.5V) to (VAA + 0.5V)
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .Class 2


Description

The HMP8190 and HMP8191 are NTSC and PAL encoders designed for use in systems requiring the generation of highquality NTSC and PAL video.

About the HMP8190 and HMP8191, YCbCr digital video data drive the P0-P15 inputs. The Y data  is optionally lowpass filtered to 6MHz and drives the Y analog output. Cb and Cr are each lowpass filtered to 1.3MHz, quadrature modulated, and added together. The result drives the C analog output. The digital Y and C data are also added together and drive the composite analog output.

The HMP8190 and HMP8191 can drive doubly-terminated (37.5W) lines, and run at a 2x oversampling rate to simplify the analog output filter requirements.
