HMP8117

Features: • (M) NTSC and (B, D, G, H, I, M, N, NC) PAL Operation- Optional Auto Detect of Video Standard- ITU-R BT.601 (CCIR601) and Square Pixel Operation• Videolyzer Feature- Macrovision™ Bypass and Detection• Digital Anti-Alias Filter• Power Down Mode• Digita...

product image

HMP8117 Picture
See larger image
SeekIC No. : 004364760 Detail

HMP8117: Features: • (M) NTSC and (B, D, G, H, I, M, N, NC) PAL Operation- Optional Auto Detect of Video Standard- ITU-R BT.601 (CCIR601) and Square Pixel Operation• Videolyzer Feature- Macrovisi...

HMP8117 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMP8117
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• (M) NTSC and (B, D, G, H, I, M, N, NC) PAL Operation
- Optional Auto Detect of Video Standard
- ITU-R BT.601 (CCIR601) and Square Pixel Operation
• Videolyzer Feature
- Macrovision™ Bypass and Detection
• Digital Anti-Alias Filter
• Power Down Mode
• Digital Output Formats
- VMI Compatible
- 8-bit, 16-bit 4:2:2 YCbCr
- 15-bit (5,5,5), 16-bit (5,6,5) RGB
- Linear or Gamma-Corrected
- 8-bit BT.656
• Analog Input Formats
- Three Analog Composite Inputs
- Analog Y/C (S-video) Input
• "Raw" (Oversampled) VBI Data Capture
• "Sliced" VBI Data Capture Capabilities
- Closed Captioning
- Widescreen Signalling (WSS)
- BT.653 System B, C and D Teletext
- North American Broadcast Teletext (NABTS)
- World System Teletext (WST)
• 2-Line (1H) Comb Filter Y/C Separator
• Fast I2C Interface


Application

• Multimedia PCs
• Video Conferencing
• Video Compression Systems
• Video Security Systems
• LCD Projectors and Overhead Panels
• Related Products
- NTSC/PAL Encoders: HMP815x, HMP817x, HMP819x
- NTSC/PAL Decoders: HMP8112A, HMP8115


Pinout

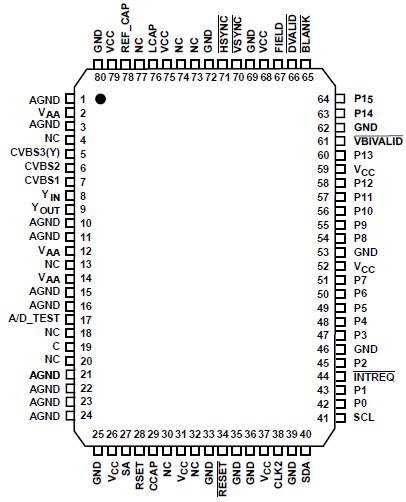

Connection Diagram


Specifications

Digital Supply Voltage (VCC to GND) . . . . . . . . . . . . . . . . . . . . 7.0V
Analog Supply Voltage (VAA to GND) . . . . . . . . . . . . . . . . . .  . 7.0V
Digital Input Voltages . . . . . . . . . . . . . . .GND - 0.5V to VCC + 0.5V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1


Description

The HMP8117 is a high quality NTSC and PAL video decoder with internal A/D converters. It is compatible with NTSC M, PAL B, D, G, H, I, M, N, and combination N (NC) video standards.

Both composite and S-video (Y/C) input formats are supported by HMP8117. A 2-line comb filter plus a user-selectable chrominance trap filter provide high quality Y/C separation. User adjustments include brightness, contrast, saturation, hue, and sharpness.

Vertical blanking interval (VBI) data, such as Closed Captioning, Wide Screen Signalling and Teletext, may be captured and output as BT.656 ancillary data. Closed Captioning and Wide Screen Signalling information may also be read out via the I2C interface of HMP8117.

The HMP8117 Videolyzer™ feature provides approved Macrovision™ copy-protection bypass and detection.
