HMC564LC4

Series: -
Test Frequency: -
Packaging: Cut Tape (CT)Alternate Packaging
Gain: 17dB
RF Type: General Purpose
Current - Supply: 75mA
Voltage - Supply: 2.5 V ~ 3.5 V
P1dB: 13dBm
Noise Figure: 1.8dB
Manufacturer: Hittite Microwave Corporation
Frequency: 7GHz ~ 14GHz

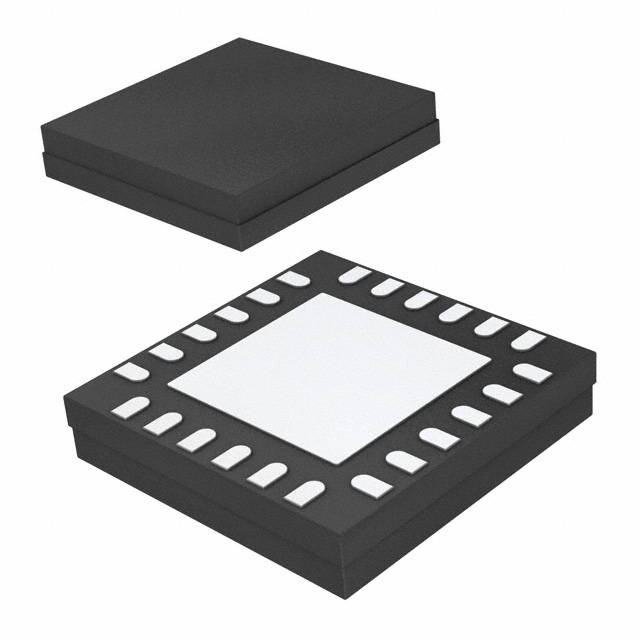

Package / Case: 24-TFQFN Exposed Pad


Features:

·Noise Figure: 1.8 dB
·Gain: 17 dB
·OIP3: 25 dBm
·Single Supply: +3V @ 51 mA
·50 Ohm Matched Input/Output
·RoHS Compliant 4 x 4 mm Package


Application

• Point-to-Point Radios
• Point-to-Multi-Point Radios & VSAT
• Test Equipment and Sensors
• Military & Space


Pinout




Specifications

Drain Bias Voltage (Vdd1, Vdd2)	+3.5 Vdc
RF Input Power (RFin) (Vdd = +3.0 Vdc)	+5 dBm
Channel Temperature	175
Continuous Pdiss (T= 85 ) (derate 12.9 mW/ above 85 )	1.16 W
Thermal Resistance (channel to ground paddle)	77.5 /W
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85

Description

The HMC564LC4 is a high dynamic range GaAs PHEMT MMIC Low Noise Amplifi er housed in a leadless RoHS compliant 4x4mm SMT package. Operating from 7 to 14 GHz, the HMC564LC4 features extremely fl at small signal gain of 17 dB as well as 1.8 dB noise fi gure and +25 dBm output IP3 across the operating band. This self-biased LNA is ideal for microwave radios due to its consistent output power, single +3V supply operation, and DC blocked RF I/O's.
