HMC547LP3

Features: ·High Isolation: >50 dB up to 5 GHz >45 dB up to 15 GHz·Low Insertion Loss: 1.6 dB @ 10 GHz 2.0 dB @ 20 GHz·Fast Switching·Non-Refl ective Design·QFN SMT Package, 9 mm2ApplicationThe HMC547LP3 is ideal for:• Basestation Infrastructure• Fiber Optics & Broadband Telec...

product image

HMC547LP3 Picture
See larger image
SeekIC No. : 004364221 Detail

HMC547LP3: Features: ·High Isolation: >50 dB up to 5 GHz >45 dB up to 15 GHz·Low Insertion Loss: 1.6 dB @ 10 GHz 2.0 dB @ 20 GHz·Fast Switching·Non-Refl ective Design·QFN SMT Package, 9 mm2ApplicationThe...

HMC547LP3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC547LP3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·High Isolation: >50 dB up to 5 GHz
   >45 dB up to 15 GHz
·Low Insertion Loss: 1.6 dB @ 10 GHz
   2.0 dB @ 20 GHz
·Fast Switching
·Non-Refl ective Design
·QFN SMT Package, 9 mm2


Application

The HMC547LP3 is ideal for:
• Basestation Infrastructure
• Fiber Optics & Broadband Telecom
• Microwave Radio & VSAT
• Military Radios, Radar, & ECM
• Test Instrumentation


Pinout

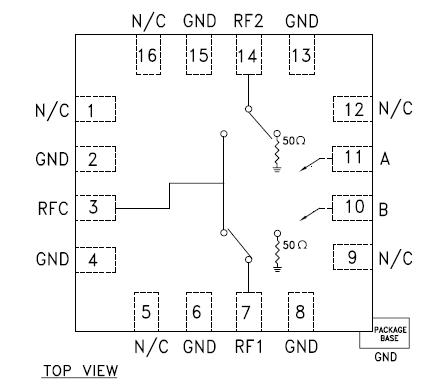

Connection Diagram


Specifications

RF Input Power (Vctl = -5V) +23 dBm
Control Voltage Range (A & B) +23 dBm
Hot Switch Power Level
(Vctl = -5V)		 +23 dBm
Channel Temperature 150 °C
Continuous Pdiss (T=85°C)
(derate 4 mW/°C about 85°C)		 0.26 W
Thermal Resistance
(Insertion Loss Path)		 420 °C/W
Thermal Resistance
(Terminated Path)		 250 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -55 to +85 °C
ESD Sensitivity (HBM) Class 1C



Description

The HMC547LP3 is a general purpose broadband high isolation non-refl ective GaAs MESFET SPDT switch in a low cost leadless QFN surface mount plastic package. Covering DC to 20 GHz, the switch offers high isolation and low insertion loss. The switch features >50 dB isolation up to 5 GHz and >45 dB solation up to 15 GHz. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply. The HMC547LP3 is  packaged in a leadless QFN 3 x 3 mm surface mount package.
