Product Details

Description

Features:

·Ultra Low SSB Phase Noise: -150 dBc/Hz
·Very Wide Bandwidth
·Output Power: -4 dBm
·Single DC Supply: +5V
·3 x 3 x 1 mm QFN SMT Package

Application

•Prescaler for DC to 18 GHz PLL Applications:
Point-to-Point / Multi-Point Radios
  VSAT Radios
  Fiber Optic
  Test Equipment
  Military

Pinout

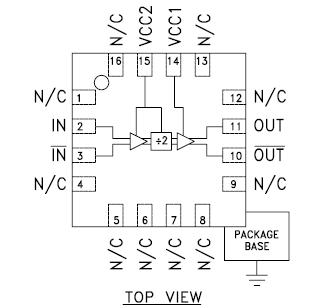

Connection Diagram

Specifications

RF Input (Vcc = +5V)	+13 dBm
Supply Voltage (Vcc1, Vcc2)	+5.5V
Channel Temperature (Tc)	135 °C
Continuous Pdiss (T = 85 °C) (derate 11.9 mW/° C above 85 °C)	593 mW
Storage Temperature	-65 to +150 °C
Thermal Resistance (R_TH) (junction to ground paddle)	84 °C/W
Operating Temperature	-40 to +85 °C

Description

The HMC492LP3 is a low noise Divide-by-2 Static Divider utilizing InGaP GaAs HBT technology packaged in a leadless 3x3 mm QFN surface mount plastic package. This HMC492LP3 operates from DC (with a square wave input) to 18 GHz input frequency from a single +5.0V DC supply. The low additive SSB phase noise of -150 dBc/Hz at 100 kHz offset helps the user maintain excellent system noise performance
