HMC485MS8G

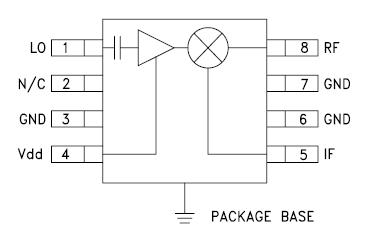

The HMC485MS8G is a high dynamic range passive MMIC mixer with an integrated LO amplifi er in a plastic surface mount 8 lead Mini Small Outline Package (MSOP) covering 1.7 to 2.2 GHz. Excellent input IP3 performance of +34 dBm for down conversion and +27 dBm for up conversion is provided for 2.5G & 3G GSM/CDMA based UMTS or PCS applications at an LO drive of 0 dBm. With an input 1 dB compression of +19 dBm, the RF port will accept a wide range of input signal levels. Conversion loss is 9.2 dB typical. The 50 to 300 MHz IF frequency response will satisfy many UMTS/PCS transmit or receive frequency plans confi gured for low side LO. The HMC485MS8G input IP3 performance coupled with its high P1dB rivals traditional active FET mixers while offering a much smaller 14.8mm2 standard IC footprint.
