HMC478MP86

Features: ·P1dB Output Power: +18 dBm·Gain: 22 dB·Output IP3: +32 dBm·Cascadable 50 Ohm I/Os·Single Supply: +5V to +8V·Robust 1,000V ESD, Class 1CApplication•The HMC478MP86 is an ideal RF/IF gain block & LO or PA driver:Cellular / PCS / 3GFixed Wireless & WLANCATV, Cable Modem & ...

product image

HMC478MP86 Picture
See larger image
SeekIC No. : 004364115 Detail

HMC478MP86: Features: ·P1dB Output Power: +18 dBm·Gain: 22 dB·Output IP3: +32 dBm·Cascadable 50 Ohm I/Os·Single Supply: +5V to +8V·Robust 1,000V ESD, Class 1CApplication•The HMC478MP86 is an ideal RF/IF g...

HMC478MP86 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC478MP86
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·P1dB Output Power: +18 dBm
·Gain: 22 dB
·Output IP3: +32 dBm
·Cascadable 50 Ohm I/Os
·Single Supply: +5V to +8V
·Robust 1,000V ESD, Class 1C


Application

•The HMC478MP86 is an ideal RF/IF gain block & LO or PA driver:
  Cellular / PCS / 3G
  Fixed Wireless & WLAN
  CATV, Cable Modem & DBS
  Microwave Radio & Test Equipment


Pinout

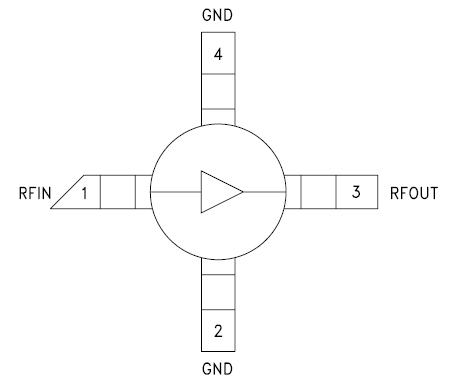

Connection Diagram


Specifications

Collector Bias Voltage (Vcc) +6.0 Vdc
Collector Bias Current (Icc) 100 mA
RF Input Power (RFin)(Vcc = +4.3 Vdc) +5 dBm
Junction Temperature 150 °C
Continuous Pdiss (T = 85 °C)
(derate 9 mW/°C above 85 °C)		 0.583 W
Thermal Resistance
(junction to lead)		 111.5 °C/W
orage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C
ESD Sensitivity (HBM) Class 1C



Description

The HMC478MP86 is a SiGe Heterojunction Bipolar Transistor (HBT) Gain Block MMIC SMT amplifi er covering DC to 4 GHz. This Micro-P packaged amplifi er can be used as a cascadable 50 Ohm RF/IF gain stage as well as a LO or PA driver with up to +20 dBm output power. The HMC478MP86 offers 22 dB of gain with a +32 dBm output IP3 at 850 MHz while requiring only 62 mA from a single positive supply. The Darlington feedback pair used results in reduced sensitivity to normal process variations and excellent gain stability over temperature while requiring a minimal number of external bias components.
