HMC465LP5

Features:

Gain: 15 dB
Output Voltage to 10Vpk-pk
+24 dBm Saturated Output Power
Supply Voltage: +8V @160 mA
50 Ohm Matched Input/Output
25mm2 Leadless SMT Package


Application

The HMC465LP5 wideband driver is ideal for:
• OC192 LN/MZ Modulator Driver
• Microwave Radio & VSAT
• Test Instrumentation
• Military EW, ECM & C³I

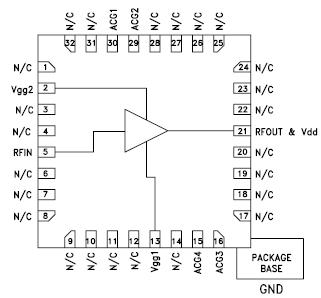

Pinout




Specifications

Drain Bias Voltage (Vdd)	+9.0 Vdc
Gate Bias Voltage (Vgg1)	-2.0 to 0 Vdc
Gate Bias Voltage (Vgg2)	(Vdd -8.0) Vdc to Vdd
RF Input Power (RFin)(Vdd = +8.0 Vdc)	+23 dBm
Channel Temperature	150 °C
Continuous Pdiss (T= 85 °C) (derate 24 mW/°C above 85 °C)	1.56 W
Thermal Resistance (channel to die bottom)	41.5 °C/W
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C

Description

The HMC465LP5 is a GaAs MMIC PHEMT Distributed Driver Amplifi er packaged in a leadless 5 x 5 mm surface mount package which operates between DC and 20 GHz. The amplifi er provides 15 dB of gain, 3 dB noise fi gure and +25 dBm of saturated output power while requiring only 160 mA from a +8V supply. Gain fl atness is excellent at ±0.25 dB as well as +/- 4 deg deviation from linear phase from DC - 10 GHz making the HMC465LP5 ideal for OC192 fi ber optic LN/MZ modulator driver amplifi er as well as test equipment applications. The HMC465LP5 amplifi er I/Os are internally matched to 50 Ohms.
