HMC463LP5

Features: Gain: 13 dBNoise Figure: 2.8 dB @ 10 GHzP1dB Output Power: +18 dBm @ 10 GHzSupply Voltage: +5.0V @ 60 mA50 Ohm Matched Input/Output25 mm2 Leadless PackageApplicationThe HMC463LP5 is ideal for:• Telecom Infrastructure• Microwave Radio & VSAT• Military EW, ECM & C...

product image

HMC463LP5 Picture
See larger image
SeekIC No. : 004364092 Detail

HMC463LP5: Features: Gain: 13 dBNoise Figure: 2.8 dB @ 10 GHzP1dB Output Power: +18 dBm @ 10 GHzSupply Voltage: +5.0V @ 60 mA50 Ohm Matched Input/Output25 mm2 Leadless PackageApplicationThe HMC463LP5 is ideal ...

HMC463LP5 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC463LP5
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Gain: 13 dB
Noise Figure: 2.8 dB @ 10 GHz
P1dB Output Power: +18 dBm @ 10 GHz
Supply Voltage: +5.0V @ 60 mA
50 Ohm Matched Input/Output
25 mm2 Leadless Package


Application

The HMC463LP5 is ideal for:
• Telecom Infrastructure
• Microwave Radio & VSAT
• Military EW, ECM & C3I
• Test Instrumentation
• Fiber Optics


Pinout

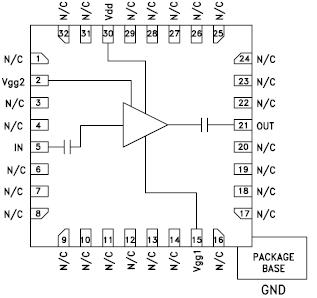

Connection Diagram


Specifications

Drain Bias Voltage (Vdd) +9.0 Vdc
Gate Bias Voltage (Vgg1) -2.0 to 0 Vdc
Gate Bias Voltage (Vgg2)(AGC) (Vdd -9.0)
Vdc to +2.0 Vdc
RF Input Power (RFin)(Vdd = +5.0 Vdc) +23 dBm
Channel Temperature 150 °C
Continuous Pdiss (T= 85 °C)
(derate 50 mW/°C above 85 °C)		 3.25 W
Thermal Resistance
(channel to die bottom)		 20 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC463LP5 is a GaAs MMIC PHEMT Low Noise AGC Distributed Amplifi er packaged in a leadless 5 x 5 mm surface mount package which operates between 2 and 20 GHz. The amplifi er provides 13 dB of gain, 3.0 dB noise fi gure and 18 dBm of output power at 1 dB gain compression while requiring only 60 mA from a +5V supply. An optional gate bias (Vgg2) is provided to allow Adjustable Gain Control (AGC) of 8 dB typical. Gain fl atness is excellent at ±0.5 dB from 6 - 18 GHz making the HMC463LP5 ideal for EW, ECM RADAR and test equipment applications. The HMC463LP5 LNA I/Os are internally matched to 50 Ohms and are internally DC blocked.
