HMC462LP5

Features: Noise Figure: 2.5 dB @ 10 GHzGain: 13 dBP1dB Output Power: +14.5 dBm @ 10 GHzSelf-Biased: +5.0V @ 66 mA50 Ohm Matched Input/Output25 mm2 Leadless SMT PackageApplicationThe HMC462LP5 Wideband LNA is ideal for:• Telecom Infrastructure• Microwave Radio & VSAT• Military...

product image

HMC462LP5 Picture
See larger image
SeekIC No. : 004364089 Detail

HMC462LP5: Features: Noise Figure: 2.5 dB @ 10 GHzGain: 13 dBP1dB Output Power: +14.5 dBm @ 10 GHzSelf-Biased: +5.0V @ 66 mA50 Ohm Matched Input/Output25 mm2 Leadless SMT PackageApplicationThe HMC462LP5 Wideba...

HMC462LP5 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC462LP5
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Noise Figure: 2.5 dB @ 10 GHz
Gain: 13 dB
P1dB Output Power: +14.5 dBm @ 10 GHz
Self-Biased: +5.0V @ 66 mA
50 Ohm Matched Input/Output
25 mm2 Leadless SMT Package


Application

The HMC462LP5 Wideband LNA is ideal for:
• Telecom Infrastructure
• Microwave Radio & VSAT
• Military EW, ECM & C3I
• Test Instrumentation
• Fiber Optics


Pinout

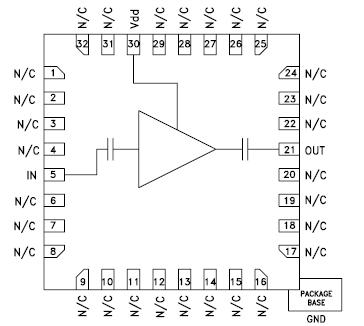

Connection Diagram


Specifications

Drain Bias Voltage (Vdd) +9.0 Vdc
RF Input Power (RFin)(Vs = +5.0 Vdc)

 +23 dBm
Channel Temperature 175 °C
Continuous Pdiss (T= 85 °C)
(derate 50 mW/°C above 85 °C)		 3.25 W
Thermal Resistance
(channel to die bottom)		 20 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC462LP5 is a GaAs MMIC PHEMT Low Noise Distributed Amplifi er in a leadless 5 x 5 mm surface mount package which operates between 2 and 20 GHz. The self-biased amplifi er provides 13 dB of gain, 2.5 to 3.5 dB noise fi gure and +14.5 dBm of output power at 1 dB gain compression while requiring only 66 mA from a single +5V supply. Gain fl atness is excellent from 6 - 18 GHz making the HMC462LP5 ideal for EW, ECM RADAR and test equipment applications. The wideband amplifi er I/Os are internally matched to 50 Ohms and are internally DC blocked.
