HMC444LP4

Features:

Output Power: +6 dBm
Sub-Harmonic Suppression: >25 dBc
SSB Phase Noise: -136 dBc/Hz
Single Supply: +5V@ 68 mA
16 mm2 Leadless SMT Package


Application

Active Multiplier for X Band Applications:
• Fiber Optic
• Pt to Pt Radios
• Military Radar

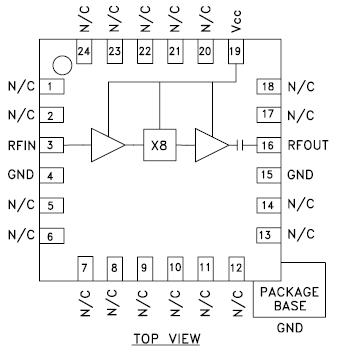

Pinout




Specifications

RF Input (Vcc= +5V)	+20 bBm
Vcc	+6.0 Vdc
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C

Description

The HMC444LP4 is an active miniature x8 frequency multiplier utilizing InGaP GaAs HBT technology in a 4 mm x 4 mm leadless surface mount package. Power output is +6 dBm typical from a 5.0V supply voltage and varies little vs. input power, temperature and supply voltage. Suppression of undesired fundamental and sub-harmonics is >25 dBc typical with respect to output signal level. The low additive SSB phase noise of -136 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance. The HMC444LP4 is ideal for use in LO multiplier chains allowing reduced parts count vs. traditional approaches.
