HMC441LP3

Features: Gain: 14 dBSaturated Power: +20 dBm @ 20% PAESingle Supply Voltage:+5.0 V w/ Optional Gate Bias50 Ohm Matched Input/Output3 x 3 x 1 mm QFN SMT PackageApplicationThe HMC441LP3 is a medium PA for:• Point-to-Point Radios• Point-to-Multi-Point Radios• VSAT• LO Driver ...

product image

HMC441LP3 Picture
See larger image
SeekIC No. : 004364056 Detail

HMC441LP3: Features: Gain: 14 dBSaturated Power: +20 dBm @ 20% PAESingle Supply Voltage:+5.0 V w/ Optional Gate Bias50 Ohm Matched Input/Output3 x 3 x 1 mm QFN SMT PackageApplicationThe HMC441LP3 is a medium P...

HMC441LP3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC441LP3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Gain: 14 dB
Saturated Power: +20 dBm @ 20% PAE
Single Supply Voltage:
+5.0 V w/ Optional Gate Bias
50 Ohm Matched Input/Output
3 x 3 x 1 mm QFN SMT Package


Application

The HMC441LP3 is a medium PA for:
• Point-to-Point Radios
• Point-to-Multi-Point Radios
• VSAT
• LO Driver for HMC Mixers
• Military EW & ECM


Pinout

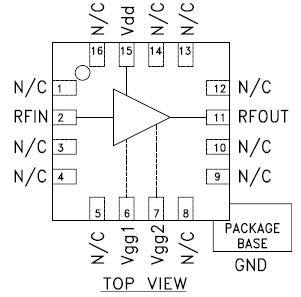

Connection Diagram


Specifications

Drain Bias Voltage (Vdd) +6.0 Vdc
Gate Bias Voltage (Vgg1,Vgg2) -8.0 to 0 Vdc
RF Input Power (RFin)(Vdd = +5.0 Vdc) +20 dBm
Channel Temperature 150 °C
Continuous Pdiss (T= 85 °C)
(derate 10 mW/°C above 85 °C)		 0.65 W
Thermal Resistance
(channel to die bottom)		 100 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC441LP3 is a broadband GaAs PHEMT MMIC Medium Power Amplifi er which operates between 6.5 and 13.5 GHz. The leadless plastic QFN surface mount packaged amplifi er provides 14 dB of gain, +20 dBm saturated power at 20% PAE from a +5.0 V supply voltage. An optional gate bias is provided to allow adjustment of gain, RF output power, and DC power dissipation. This 50 Ohm matched amplifi er does not require any external components making HMC441LP3  an ideal linear gain block or driver for HMC SMT mixers.
