HMC441LC3B

Series: -
Test Frequency: -
Packaging: Cut Tape (CT)Alternate Packaging
Gain: 14dB
Voltage - Supply: 5V
RF Type: General Purpose
Noise Figure: 4.5dB
Manufacturer: Hittite Microwave Corporation
P1dB: 20dBm
Current - Supply: 115mA
Frequency: 6GHz ~ 18GHz
Package / Case: 12-VFQFN Exposed Pad


Features:

Gain: 17 dB
Saturated Power: +22 dBm @ 27% PAE
Single Supply Voltage: +5.0 V
50 Ohm Matched Input/Output
RoHS Compliant 3 x 3 mm SMT package


Application

The HMC441LC3B is ideal for use as a medium
power amplifi er for:
• Point-to-Point Radios
• Point-to-Multi-Point Radios & VSAT
• LO Driver for HMC Mixers
• Military EW & ECM

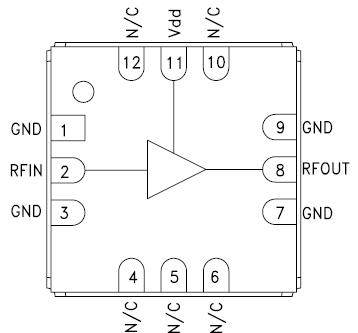

Pinout




Specifications

Drain Bias Voltage (Vdd)	+5.5 Vdc
RF Input Power (RFin)(Vdd = +5.0 Vdc)	+20 dBm
Channel Temperature	150 °C
Continuous Pdiss (T= 85 °C) (derate 10 mW/°C above 85 °C)	0.65 W
Thermal Resistance (channel to die bottom)	100 °C/W
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C
ESD Sensitivity (HBM)	Class 1A

Description

The HMC441LC3B is an effi cient GaAs PHEMT MMIC Medium Power Amplifi er housed in a leadless "Pb free" RoHS compliant SMT package. Operating between 6.0 and 18.0 GHz, the amplifi er provides 17 dB of gain, +22 dBm of saturated power and 27% PAE from a +5.0 V supply voltage. This 50 Ohm matched amplifi er does not require any external components, making it an ideal linear gain block or driver for HMC SMT mixers. The HMC441LC3B allows the use of surface mount manufacturing techniques.
