HMC437MS8G

Features:

·SSB Phase Noise: -153 dBc/Hz @100KHz
·Wide Bandwidth
·Output Power: -1 dBm
·Single DC Supply: +5V @ 69 mA
·MS8G SMT Package


Application

Prescaler for DC to C Band PLL Applications:
• UNII, Pt. - Pt. & VSAT Radios
• 802.11a & HiperLAN WLAN
• Fiber Optic
• Cellular / 3G Infrastructure

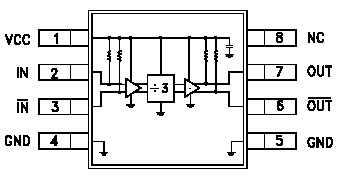

Pinout




Specifications

RF Input (Vcc= +5V)	+13dBm
Vcc	+5.5V
Maximum Channel Temperature	135
Continuous Pdiss (T = 85 ) (derate 9.85 mW/ above 85 )	424 mW
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85

Description

The HMC437MS8G is a low noise Divide-by-3 Static Divider utilizing InGaP GaAs HBT technology in a low cost 8 lead surface mount plastic package. This HMC437MS8G operates from DC (with a square wave input) to 7.0 GHz input frequency from a single +5.0V DC supply. The low additive SSB phase noise of -153 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance.
