Description



Features:

Low Insertion Loss: 1.0 dB
High IP3: +50 dBm
P1dB Compression: 1 Watt
Positive Control: 0/+3V
Ultra Small MSOP8G Package: 14.8 mm2


Application

This switch is ideal for use as a DPDT Diversity
Switch for 4.9 - 5.9 GHz applications:
• HiperLAN & 802.11a WLAN
• UNII Radios


Pinout

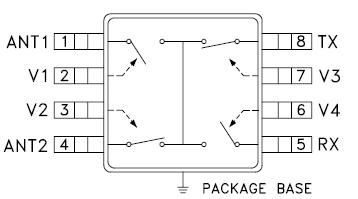

Connection Diagram


Specifications

RF Input Power Vctl= 0/+3V +30 dBm
Control Voltage Range (V1, V2, V3, V4) -0.5 to +7.5 Vdc
Storage Temperature -65 to +150
Operating Temperature -40 to +85



Description

The HMC436MS8G is a low cost C-band DPDT switch that operates between 4.9 and 5.9 GHz. This switch can operate as an integrated antenna diversity and transmit/receive switch for the 802.11a/HiperLAN and UNII radio platforms. The design provides 20 dB of isolation between antennas and between Tx and Rx ports. The HMC436MS8G switch features 1 dB insertion loss and high power handling capability. Switch state is controlled using four control voltage lines toggled between 0 and +3 to +5V.
